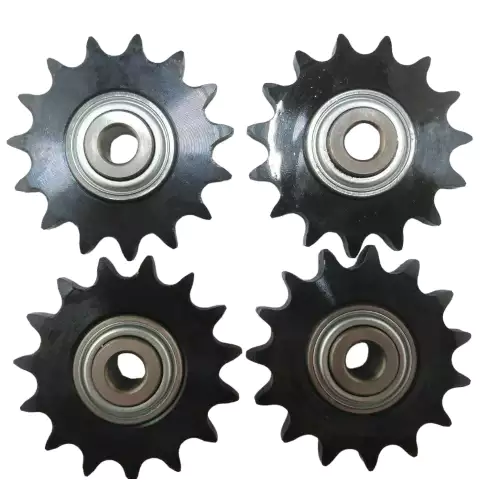

Idler Sprocket 15T 5/8"??3/8"

Introduction

Idler Sprocket 15T 5/8"??3/8" is a type of sprocket used in power transmission systems. It is an important component that helps in maintaining the tension of the chain and also in guiding the chain around the sprocket.

Basic Concept of Idler Sprocket

An idler sprocket, also known as a tensioner sprocket or guide sprocket, is used to maintain tension in the chain and to guide it around the sprocket. It is typically used in applications where the chain has to make a turn or go around an oblique angle. The idler sprocket is designed to prevent the chain from derailing or jumping off the sprocket.

Definition and Basic Structure

An idler sprocket is a type of sprocket that is used to route a chain or timing belt around a corner or other obstacle. It consists of a sprocket with teeth that mesh with the chain, and a shaft that supports the sprocket. The shaft is mounted on a bracket or other support that allows it to rotate freely. The sprocket and shaft are typically made of steel or other durable materials.

There are two common types of idler sprockets ?C ball-bearing and bushing-type. Ball-bearing idler sprockets are mounted on bearings that allow the sprocket to rotate freely. Bushing-type idler sprockets are mounted on a stationary bushing that supports the sprocket and allows it to rotate freely.

Working Principle

The main function of the idler sprocket is to maintain the tension of the chain and to guide it around the sprocket. When the chain moves through the idler sprocket, the sprocket rotates, and the chain moves with it. The teeth on the sprocket mesh with the links on the chain, which helps to maintain the tension in the chain and prevent it from jumping off the sprocket.

Idler sprockets are typically used in applications where the chain has to make a turn or go around an oblique angle. In such cases, the idler sprocket is used to guide the chain around the corner and to maintain the tension in the chain.

Product Features

• High-quality steel construction for durability and strength.
• Precision-machined teeth for accurate engagement with the chain.
• Designed to maintain chain tension and prevent chain derailment.
• Available in various sizes and configurations to suit different applications.
• Easy to install and maintain.

Installation Guide

Before installing the idler sprocket, make sure that you have all the necessary tools and equipment. Here are the steps to follow:

1. Prepare the mounting location and ensure that it is clean and free of debris.
2. Position the idler sprocket on the mounting location, ensuring that it is aligned with the chain and in the correct orientation.
3. Adjust the tension of the idler sprocket to ensure that it maintains the correct tension on the chain.
4. Check the installation to ensure that it is properly aligned and tensioned.
5. Test the installation to ensure that it is working correctly.

FAQ

1. What is the purpose of an idler sprocket?

An idler sprocket is used to maintain the tension of the chain and to guide it around the sprocket. It is typically used in applications where the chain has to make a turn or go around an oblique angle.

2. What is the difference between a ball-bearing and a bushing-type idler sprocket?

Ball-bearing idler sprockets are mounted on bearings that allow the sprocket to rotate freely. Bushing-type idler sprockets are mounted on a stationary bushing that supports the sprocket and allows it to rotate freely.

3. How do you install an idler sprocket?

To install an idler sprocket, you need to prepare the mounting location, position the sprocket, adjust the tension, check the alignment and tension, and test the installation.

4. What materials are idler sprockets made of?

Idler sprockets are typically made of steel or other durable materials.

5. What sizes and configurations are idler sprockets available in?

Idler sprockets are available in various sizes and configurations to suit different applications.
