JZQ Series Hydraulic Ball Valves

JZQ Series Hydraulic Ball Valves

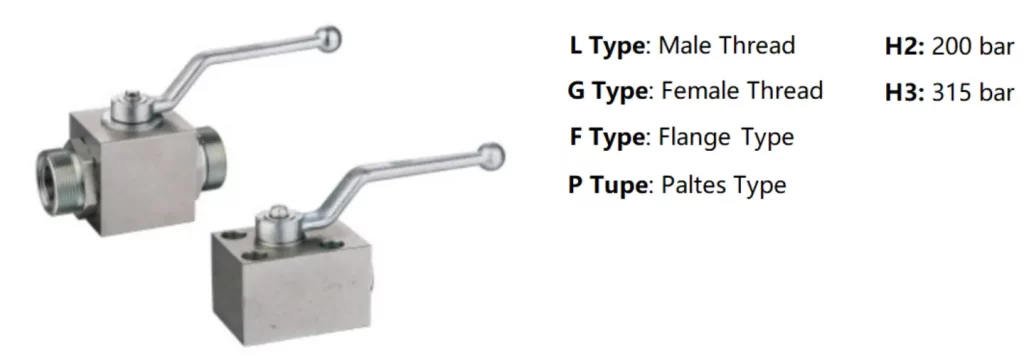

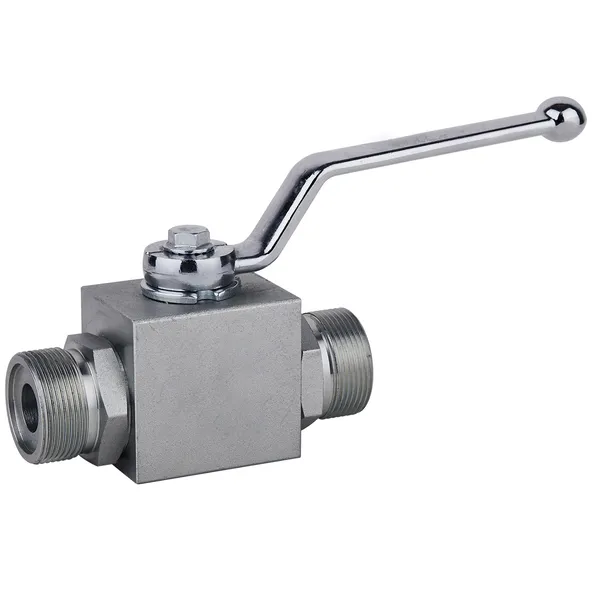

JZQ series hydraulic ball valves are a type of high-pressure ball valve that is designed for use in a variety of hydraulic applications. They are typically made of carbon steel or stainless steel, and feature a floating ball design that provides positive shutoff and low operating torque. JZQ series ball valves are available in a wide range of sizes and pressure ratings and can be used to control the flow of a variety of hydraulic fluids, including oil, water, and air.

Some of the key features of JZQ series hydraulic ball valves include:

• High pressure rating: JZQ series ball valves are typically rated for pressures up to 31.5 MPa (4500 PSI).
• Positive shutoff: The floating ball design of JZQ series ball valves ensures positive shutoff, even in high-pressure applications.
• Low operating torque: The floating ball design of JZQ series ball valves also provides low operating torque, making them easy to operate.
• Wide range of sizes and pressure ratings: JZQ series ball valves are available in a wide range of sizes and pressure ratings, making them suitable for a variety of hydraulic applications.
• Durability: JZQ series ball valves are made of high-quality materials and are designed for long-term durability.

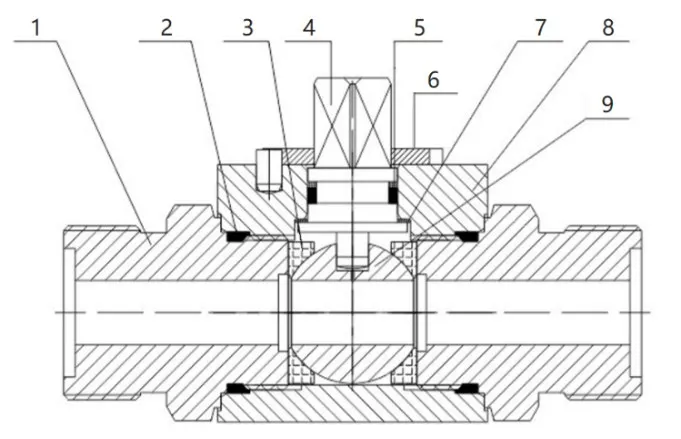

JZQ Series Hydraulic Ball Valve Materials of Construction:

	Item	Name	Material
			Stainless Steel	Carbon Steel
	1	Fittings	SS 316 / SS 304	A105 / 45#
	2	O-ring	FKM	NBR
	3	Packing	POM / PEEK	POM
	4	Stem	SS 316 / SS 304	A105 / 45#
	5	O-ring	POM / PEEK	POM
	6	stop Pin	SS 316 / SS 304	A105 / 45#
	7	Washer	SS 316 / SS 304	A105 / 45#
	8	Body	SS 316 / SS 304	A105 / 45#
	9	Ball	SS 316 / SS 304	A105 / 45#

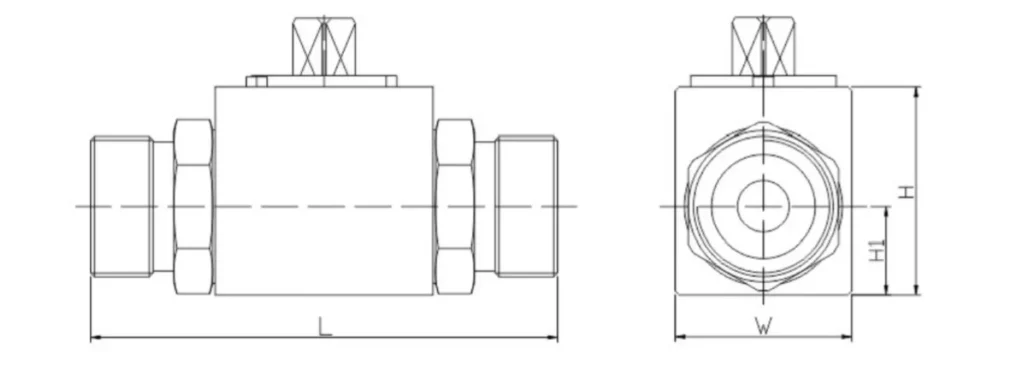

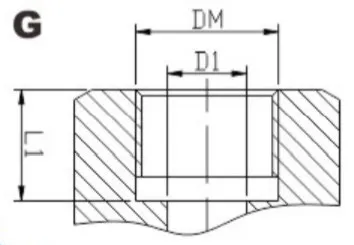

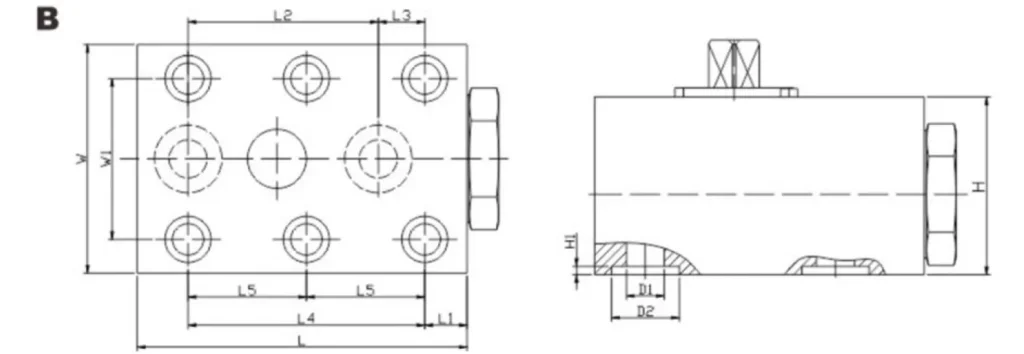

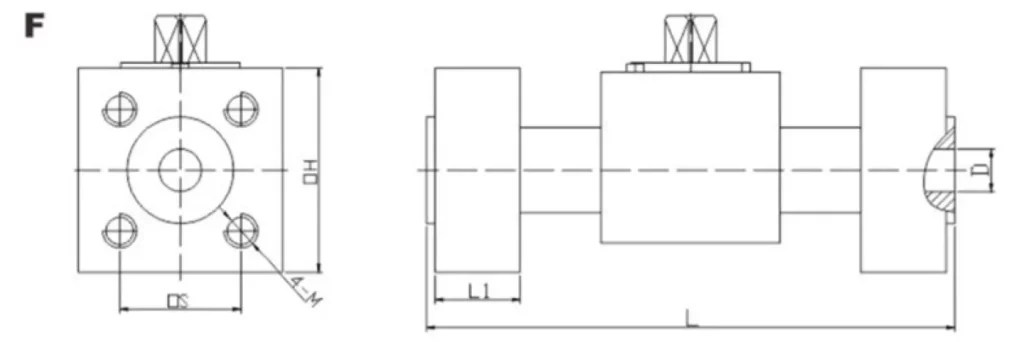

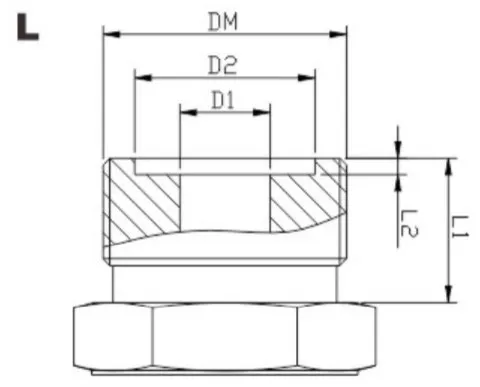

JZQ Series Hydraulic Ball Valve Dimensions:

	PART NO.	PN	DN	DM		L		L1		L2	H	H1	W		D1		D2
	JZQ-L6-H3	315	6	M16*1.5		80		12		1.3	32	13	26		6		11
	JZQ-L10-H3	315	10	M22*1.5		80		12		1.8	40	17	34		10		16
	JZQ-L15-H3	315	15	M30*1.5		91		14		2	46	19	38		15		22
	JZQ-L20-H3	315	20	M36*2		108		16.5		2	56	24	48		18		28
	JZQ-L25-H3	315	25	M42*2		126		20		2	63	29	58		22		35
	JZQ-L32-H3	315	32	M52*2		144		22		2.4	75	34	68		30		40
	JZQ-L40-H3	315	40	M60*2		160		24		2.4	86	40	80		36		50
	PART NO.	PN	DN		DM		L		L1		H	H1		W		D1
	JZQ-G6-H3	315	6		M16*1.5		80		12		32	13		26		6
	JZQ-G10-H3	315	10		M18*1.5		80		14		40	17		34		10
	JZQ-G15-H3	315	15		M27*2		91		16		46	19		38		15
	JZQ-G20-H3	315	20		M33*2		98		16		56	24		48		18
	JZQ-G25-H3	315	25		M42*2		114		20		63	29		58		22
	JZQ-G32-H3	315	32		M48*2		128		22		75	34		68		30
	JZQ-G40-H3	315	40		M48*2		135		24		86	40		80		36
