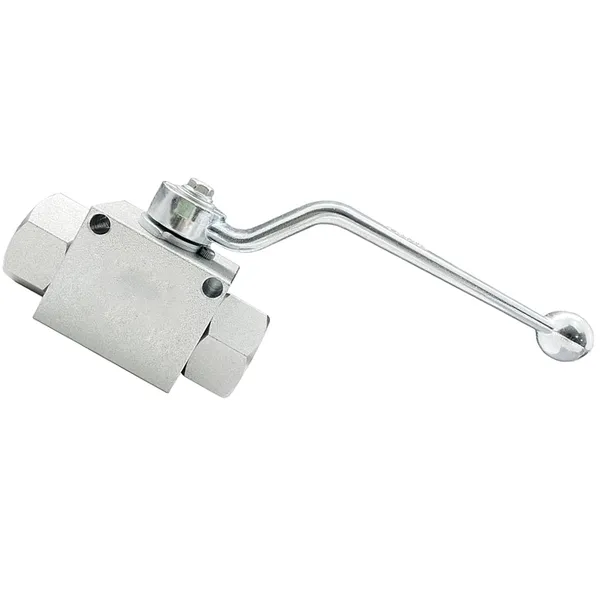

KBKH Series Hydraulic Ball Valves

Experience precision fluid control with Raydafon Group's KBKH Series Hydraulic Ball Valves, engineered for high-performance applications in industrial and hydraulic systems. Featuring durable construction, leak-proof designs, and effortless operation, this series ensures reliability in demanding environments like manufacturing and construction. Elevate efficiency and safety in your workflows with the seamless integration and superior durability that set Raydafon Group apart, providing peace of mind through every operation.

Send Inquiry

Product Description

KBKH Series Hydraulic Ball Valves

The KBKH Series hydraulic ball valves are a type of valve used in hydraulic systems to control the flow of fluid. These valves are designed to handle high-pressure applications and provide reliable performance in various industrial settings.The KBKH Series hydraulic ball valves feature a ball-shaped disc with a hole in the middle that controls the flow of fluid. When the valve is open, the ball allows the fluid to pass through the hole, and when it is closed, the ball blocks the flow, creating a tight seal. This design provides excellent shut-off capabilities and minimizes the risk of leakage.One of the key advantages of the KBKH Series ball valves is their ability to handle high-pressure applications. They are constructed using robust materials and engineering techniques to withstand the forces exerted by hydraulic systems operating at elevated pressures. This makes them suitable for use in industries such as oil and gas, manufacturing, construction, and agriculture.The KBKH Series hydraulic ball valves are available in various sizes and configurations to meet different application requirements. They can be operated manually using a lever or a handwheel, or they can be equipped with an actuator for automated control. The actuator allows for remote operation and integration with control systems, enhancing the efficiency and convenience of valve operation.These hydraulic ball valves also offer versatility in terms of flow direction. They can be designed for bi-directional flow, allowing fluid to pass through in either direction, or they can be designed for specific flow directions, such as one-way or three-way flow.

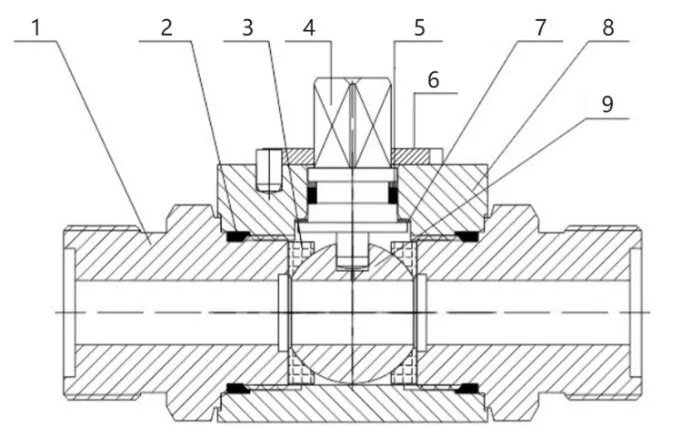

KBKH Series Hydraulic Ball Valve Materials of Construction:

Item	Name	Material
Item	Name	Stainless Steel	Carbon Steel
1	Fittings	SS 316 / SS 304	A105 / 45#
2	O-ring	FKM	NBR
3	Packing	POM / PEEK	POM
4	Stem	SS 316 / SS 304	A105 / 45#
5	O-ring	POM / PEEK	POM
6	stop Pin	SS 316 / SS 304	A105 / 45#
7	Washer	SS 316 / SS 304	A105 / 45#
8	Body	SS 316 / SS 304	A105 / 45#
9	Ball	SS 316 / SS 304	A105 / 45#

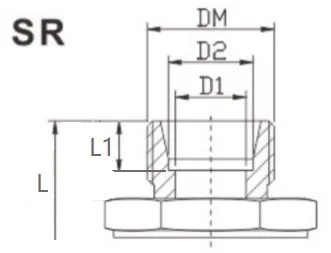

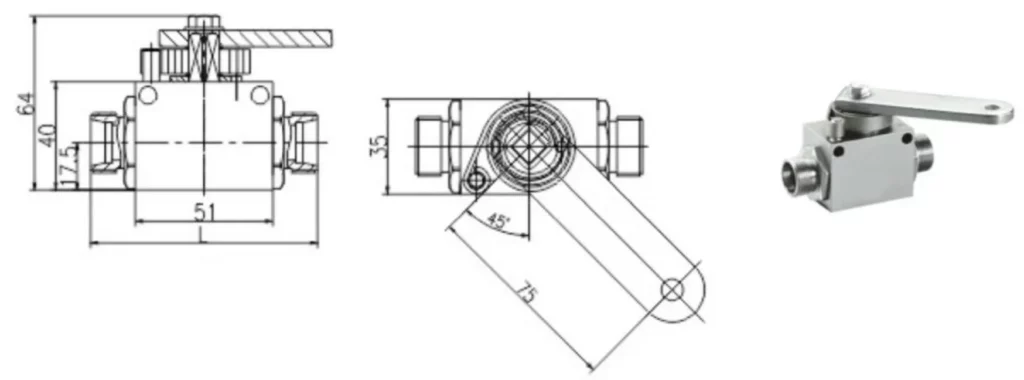

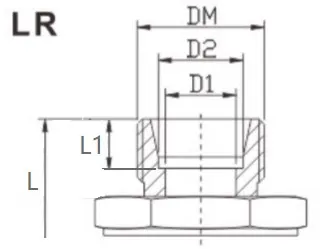

KBKH Series Hydraulic Ball Valve Dimensions:

Part NO.	PN	DN	DW	D1	D2	L	L1
HBKH-06L	400	04	M12*1.5	4	6	84	7.5
HBKH-08L	400	06	M14*1.5	6	8	84	7.5
HBKH-10L	400	08	M16*1.5	8	10	84	8.5
HBKH-12L	400	10	M18*1.5	10	12	84	8.5
HBKH-15L	400	13	M22*1.5	12	15	84	9.5
HBKH-18L	400	13	M26*1.5	12	18	84	9.5
Part NO.	PN	DN	DW	D1	D2	L	L1
HBKH-10S	400	06	M18*1.5	8	10	86	9.5
HBKH-12S	400	08	M20*1.5	10	12	86	9.5
HBKH-16S	400	13	M24*1.5	10	16	90	11.5

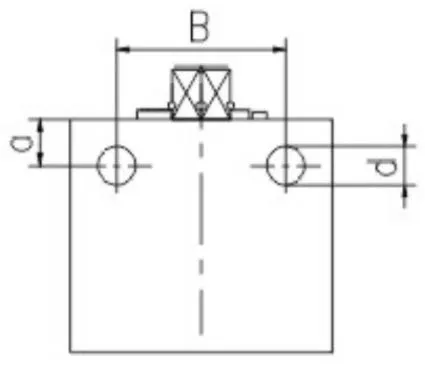

Mounting Holes on the Side:

Standard Hole				Extension Hole
DN	B	a	d	DN	B	a	d
13	37.5	4.8	6.5	13	41.5	4.8	6.5

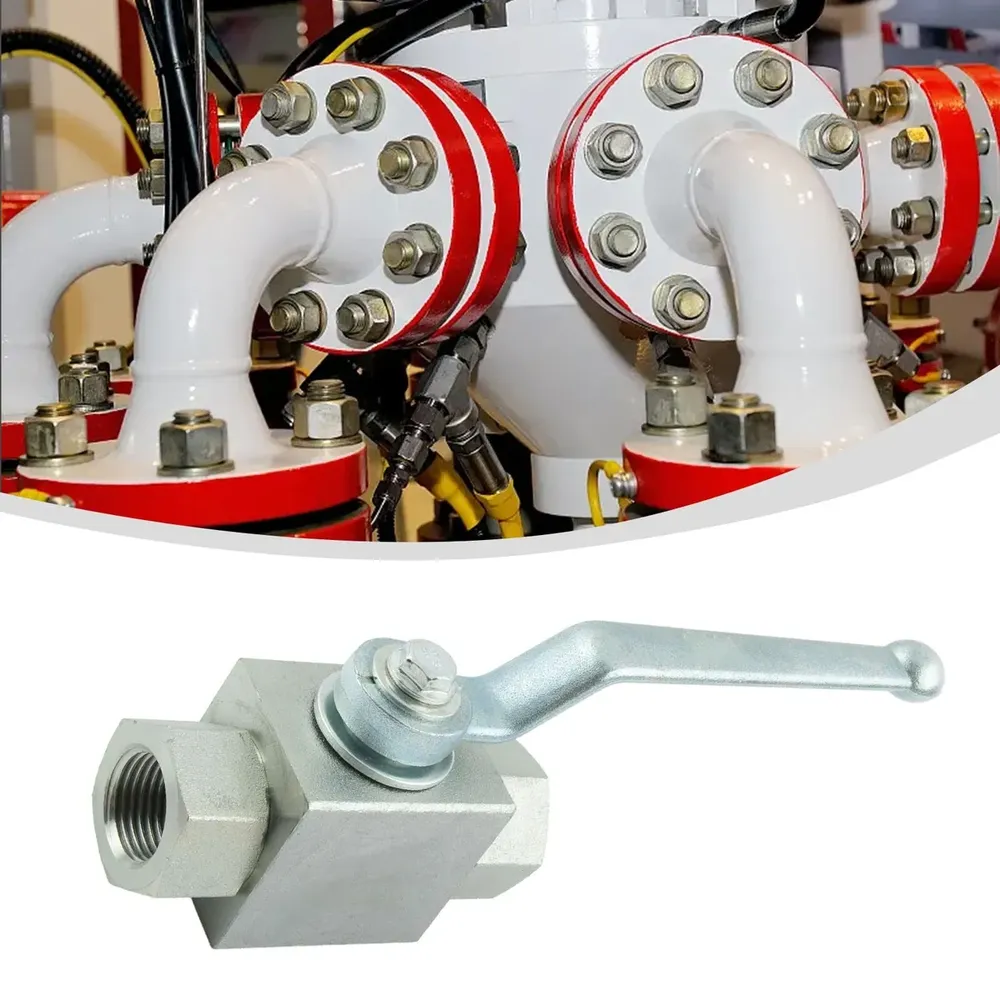

How Does the KBKH Series Hydraulic Ball Valve Work?

The KBKH series hydraulic ball valve is a quarter-turn ball valve that is designed for use in hydraulic systems. It has a robust construction and is available in a variety of sizes and materials to suit a wide range of applications.

The KBKH ball valve works by using a spherical ball with a hole bored through it to control the flow of fluid. The ball is held in place by two identical seat seals, one at each end of the valve body. When the valve is closed, the ball is rotated so that the hole is perpendicular to the flow path, blocking the flow of fluid. When the valve is open, the ball is rotated so that the hole is parallel to the flow path, allowing the fluid to flow through the valve.

The KBKH series hydraulic ball valve is actuated by a hydraulic cylinder. The cylinder is connected to the ball by a stem. When the cylinder is pressurized, the stem is pushed or pulled, rotating the ball and opening or closing the valve.

Here is a step-by-step explanation of how the KBKH series hydraulic ball valve works:

When the valve is closed, the hydraulic cylinder is retracted, and the ball is rotated so that the hole is perpendicular to the flow path.
When the valve is to be opened, the hydraulic cylinder is pressurized, pushing the stem and rotating the ball so that the hole is parallel to the flow path.
Fluid flows through the valve from the inlet port to the outlet port.
When the valve is to be closed, the hydraulic cylinder is retracted, pulling the stem and rotating the ball so that the hole is perpendicular to the flow path.
Fluid flow through the valve is stopped.

The KBKH series hydraulic ball valve is a versatile and reliable valve that can be used in a wide range of applications, including:

Industrial hydraulic systems
Mobile hydraulic systems
Oil and gas production
Power generation
Chemical processing
Water and wastewater treatment
