Male Connector-GE-M-ED Hydraulic Fittings

Male Connector-GE-M-ED Hydraulic Fittings

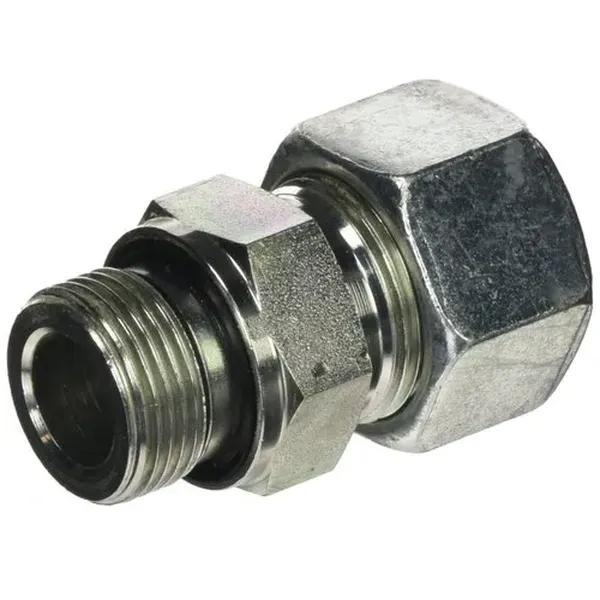

Male Connector-GE-M-ED Hydraulic Fittings are a type of hydraulic fitting that is used to connect two male hydraulic threads. They are typically made of brass or stainless steel, and they have a variety of different thread sizes and configurations. Male Connector-GE-M-ED Hydraulic Fittings are used in a variety of different industries, including construction, agriculture, and manufacturing. They are a reliable and durable way to connect hydraulic lines, and they can be used in a variety of different applications.

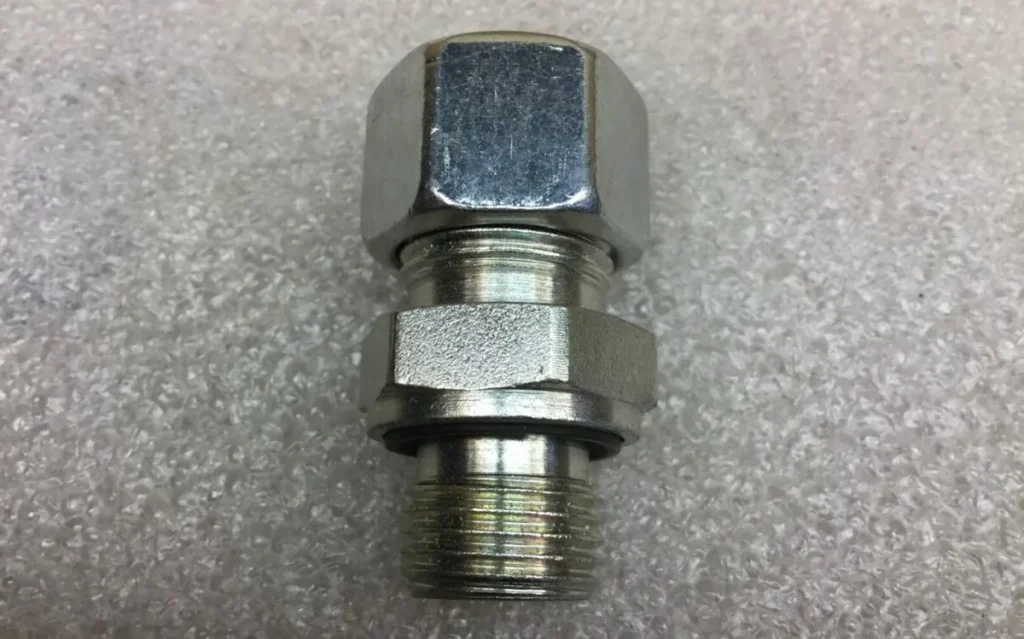

Features of Male Connector-GE-M-ED Hydraulic Fittings:

1. Durable Construction: The GE-M-ED hydraulic fittings are designed to be extra durable, making them suitable for demanding applications. They are typically constructed from high-quality materials, such as stainless steel or carbon steel, which offer excellent strength and corrosion resistance.2. Threaded Connection: These fittings feature external threads on the male end, allowing them to be easily screwed into a corresponding female fitting or component. The threaded connection ensures a tight and leak-free joint, preventing fluid leakage and maintaining system integrity.3. Sealing Mechanism: Male connectors often incorporate a sealing mechanism to enhance the sealing performance. This can include O-rings, sealing cones, or other types of seals, which provide a reliable and leak-proof connection between the male and female fittings.4. Wide Range of Sizes: Male Connector-GE-M-ED hydraulic fittings are available in various sizes to accommodate different system requirements. The sizes are typically specified by the thread diameter, such as 1/4", 3/8", or 1/2". Having a wide range of sizes allows for flexibility in system design and installation.5. Pressure and Temperature Ratings: These hydraulic fittings are designed to withstand specific pressure and temperature ranges, ensuring safe and reliable operation in hydraulic systems. It is important to select fittings that match the system's pressure and temperature requirements to prevent failures or leaks.6. Compatibility: Male Connector-GE-M-ED hydraulic fittings are designed to be compatible with General Electric equipment and hydraulic systems. They are engineered to meet the specific needs and standards of General Electric applications, ensuring proper fit and performance.7. Easy Installation: These hydraulic fittings are designed for easy installation and removal, allowing for efficient maintenance and repairs in hydraulic systems. They often feature wrench flats or other means for secure tightening and loosening.8. Versatility: Male Connector-GE-M-ED hydraulic fittings can be used in various hydraulic applications, including industrial machinery, construction equipment, hydraulic systems in vehicles, and more. Their versatility makes them suitable for a wide range of hydraulic system installations.

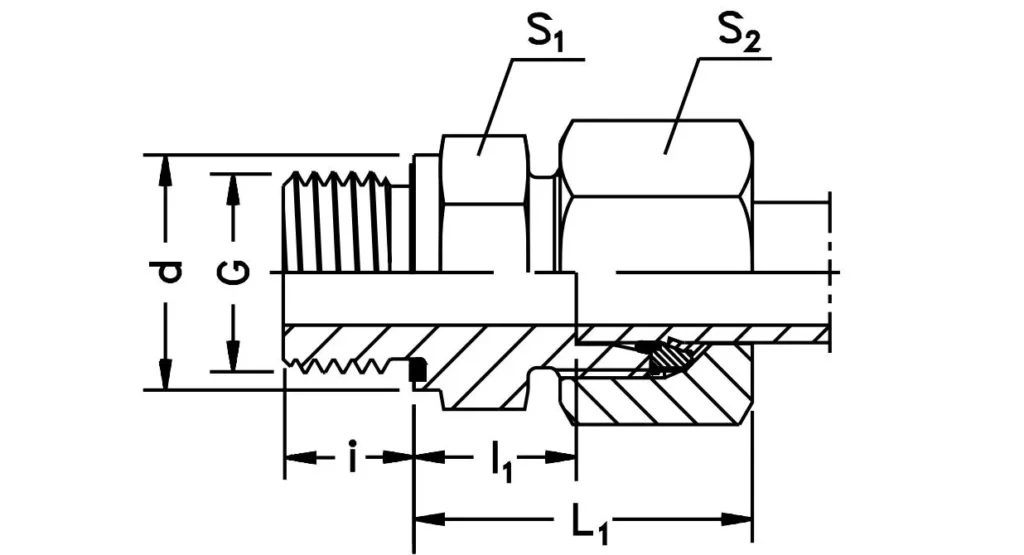

Male Connector-GE-M-ED Hydraulic Fitting Size Chart:

GE-M-ED	Series	Tube	G
Part NO.	WorkingPressure	O.d.	MaleMetric	d	i	I1	L1	S1	S2
	(bar/psi)		thread
-GE06LMED		6	M10*1	14	8	8.5	23	14	14
-GE08LMED	L light	8	M12*1.5	17	12	10	25	17	17
-GE10LMED	315 bar	10	M14*1.5	19	12	11	26	19	19
GE12LMED	4560psi	12	M16*1.5	22	12	12.5	27	22	22
-GE12LM18*1.5ED		12	M18*1.5	24	12	12.5	27	24	22
-GE12LM22*1.5ED		12	M22*1.5	27	14	14	29	27	22
-GE15LMED		15	M18*1.5	24	12	13.5	29	24	27
-GE15LM22*1.5ED		15	M22*1.5	27	14	15	30	27	27
-GE18LMED		18	M22*1.5	27	14	14.5	31	27	32
-GE22LMED	160 bar	22	M26*1.5	32	16	16.5	33	32	36
-GE28LMED	2320psi	28	M33*2	40	18	17.5	34	41	41
-GE35LMED		35	M42*2	50	20	17.5	39	50	50
-GE42LMED		42	M48*2	55	22	19	42	55	60
-GE06SMED	S Heavy	6	M12*1.5	17	12	13	28	17	17
-GE08SMED	630bar	8	M14*1.5	19	12	15	30	19	19
-GE10SMED	9130psi	10	M16*1.5	22	12	15	31	22	22
-GE12SMED		12	M18*1.5	24	12	17	33	22	24
-GE14SMED		14	M20*1.5	26	14	19	37	27	27
-GE16SMED		16	M22*1.5	27	14	18.5	37	27	30
-GE20SMED	400bar	20	M27*2	32	16	20.5	42	32	36
-GE25SMED	5800psi	25	M33*2	40	18	23	47	41	46
-GE30SMED		30	M42*2	50	20	23.5	50	50	50
-GE38SMED	315bar	38	M48*2	55	22	26	57	55	60
	4560psi

Choose the Right Male Connector-GE-M-ED Hydraulic Fitting:

Choosing the right Male Connector-GE-M-ED hydraulic fitting involves considering several factors to ensure compatibility and performance in your hydraulic system. Here's a step-by-step guide to help you make the right selection:(1) Identify the System Requirements: Determine the specific needs of your hydraulic system. Consider factors such as operating pressure, temperature range, flow rate, and the type of fluid being used. These requirements will guide you in selecting a hydraulic fitting that can handle the system's demands.(2) Determine Thread Size: Measure the thread size of the female fitting or component where the male connector will be installed. This is typically specified by the thread diameter, such as 1/4", 3/8", or 1/2". Ensure that the male connector you choose has the corresponding thread size to achieve a proper fit.(3) Consider Material Compatibility: Evaluate the compatibility of the hydraulic fitting material with the hydraulic fluid and environmental conditions. Factors such as fluid type, temperature, and possible exposure to corrosive substances should be considered. Stainless steel and carbon steel are common materials used in hydraulic fittings, but it's essential to choose a material that can withstand the specific conditions of your system.(4) Check Pressure and Temperature Ratings: Ensure that the hydraulic fittings you select have suitable pressure and temperature ratings for your hydraulic system. The hydraulic fitting should be capable of handling the maximum pressure and temperature levels that your system may encounter without compromising its integrity or performance.(5) Verify Sealing Mechanism: Assess the sealing mechanism used in the male connector. Look for features such as O-rings, sealing cones, or other seals that will provide a reliable and leak-proof connection. The sealing mechanism should be compatible with the fluid being used and capable of maintaining a tight seal under the system's operating conditions.(6) Consider Installation and Maintenance: Evaluate the ease of installation and maintenance of the hydraulic fitting. Look for features such as wrench flats or other means for secure tightening and loosening. Easy installation and maintenance can save time and effort during system assembly and repairs.

China Hydraulic Fitting Manufacturers

We're well-known as one of the leading hydraulic fitting manufacturers and suppliers, specializing in providing different kinds of fittings, instrument valves, and flanges. We warmly welcome you to buy high-quality hydraulic fittings in stock from our factory. Union - G Hydraulic Fittings, Elbow Union - W Hydraulic Fittings, Union Tee - T Hydraulic Fittings, Union Cross - K Hydraulic Fittings, Male Connector-GE-R Hydraulic Fittings, Male Connector-GE-NPT Hydraulic Fittings, Male Connector-GE-R-ED Hydraulic Fittings, Male Connector - GE-M-ED Hydraulic Fittings, Male Connector - GEO Hydraulic Fittings, Male Elbow - WE-R Hydraulic Fittings, Male Elbow - WE-M Hydraulic Fittings, Male Elbow - WE-NPT Hydraulic Fittings, Bulkhead Union - SV Hydraulic Fittings.1. We established in July 2008.2. We are a professional manufacturer of Instrumentation Tube Fittings, Pipe Fittings, Hydraulic Ball Valves, Needle valves, Ball Valves, Check Valves, Valve Manifolds, DIN 2353 Fittings, SAE Flanges, Sampling systems, and Water Heater Accessories.3. Products are available in a variety of different materials, such as Carbon Steel, Stainless steel 316/316L, Duplex, Super Duplex, Hastelloy, Monel, Inconel, Incoloy, and Titanium.4. We are located in Ningbo City, 2 two-hour drive to Shanghai, with convenient transportation access worldwide.5. Our products are widely used in industries of Chemical, Petrochemical, Power Generation, Oil, Gas, and Shipbuilding.6. Always available to discuss your requirements and ensure full customer satisfaction.7. We have more than 50 CNC machines, 3D measurement equipment, Raw Material chemical composition inspection equipment, High-pressure test equipment, etc.8. We have obtained ISO9001 and CE certificates and more than twenty utility model patents.9. Our products are exported to the United States, Japan, Germany, South America, South Africa, Southeast Asia, and many other countries.10. We also welcome OEM and ODM orders. Please feel free to contact and visit us.
