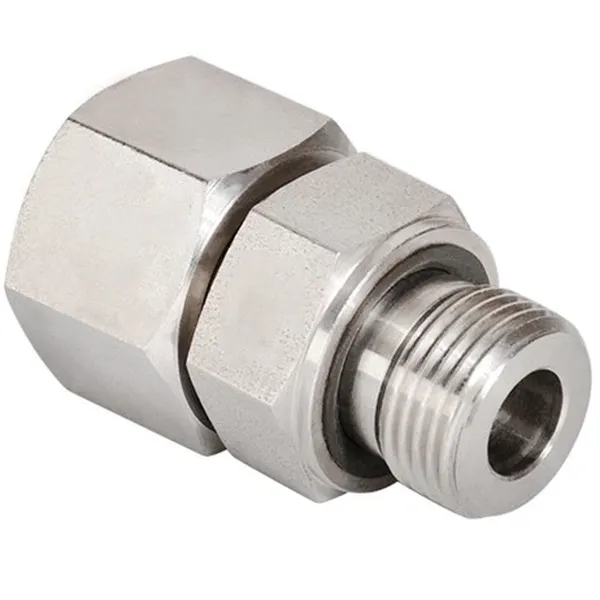

Male Connector-GEO Hydraulic Fittings

Male Connector-GEO Hydraulic Fittings

Male connector-GEO hydraulic fittings are a type of hydraulic fitting that is used to connect two hydraulic hoses or pipes. The male connector is the part of the fitting that has a male thread. Male connector-GEO hydraulic fittings are made from a variety of materials, including brass, steel, and stainless steel. The material of the hydraulic fitting will depend on the application. For example, brass fittings are often used in applications where corrosion resistance is important, while steel fittings are often used in applications where strength is important.

Male connector-GEO hydraulic fittings are available in a variety of sizes and configurations. The size of the fitting will depend on the size of the hydraulic hoses or pipes that need to be connected. The configuration of the fitting will depend on the specific needs of the application. For example, some fittings are designed to be connected to straight hoses or pipes, while other fittings are designed to be connected to angled hoses or pipes.

Male connector-GEO hydraulic fittings are a versatile and reliable type of hydraulic fitting. They can be used in a wide variety of applications and are available in a variety of sizes and configurations. Hydraulic fittings are widely used in various industries, including automotive, aerospace, construction, and manufacturing.

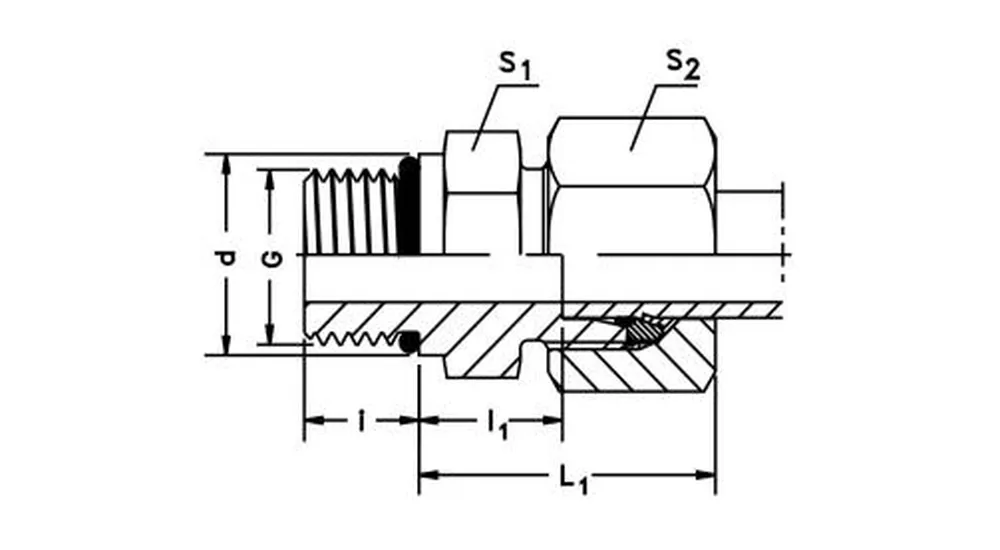

Male Connector-GEO Hydraulic Fitting Size Chart:

Part NO.	WorkingPressure (bar/psi)	O.d.	MaleMetric thread	d	i	I1	L1	S1	S2	ID&Cross Section
-GEO04LLM	LLVery light100bar1450psi	4	M8*1	11	6.5	9.5	19	11	10	6.1*1.6
-GEO04LLM10*1		4	M10*1	13	6.5	9.5	19	13	10	8.1*1.6
-GEO06LLM		6	M10*1	13	6.5	8	19.5	13	12	8.1*1.6
-GEO06LM	L light315 bar4560psi	6	M10*1	14	8.5	8.5	23	14	14	8.1*1.6
-GEO08LM		8	M12*1.5	17	11	10	25	17	17	9.3*2.2
-GEO10LM		10	M14*1.5	19	11	11	26	19	19	11.3*2.2
-GEO12LM		12	M16*1.5	22	11.5	12.5	27	22	22	13.3*2.2
-GEO15LM		15	M18*1.5	24	12.5	13.5	29	24	27	15.3*2.2
-GEO18LM		18	M22*1.5	27	13	14.5	31	27	32	19.3*2.2
-GEO22LM27*2	160bar2320psi	22	M27*1.5	32	16	16.5	33	32	36	23.6*2.9
-GEO28LM		28	M33*2	41	16	17.5	34	41	41	29.6*2.9
-GEO35LM		35	M42*2	50	16	17.5	39	50	50	38.6*2.9
-GEO42LM		42	M48*2	55	17.5	19	42	55	60	44.6*2.9
-GEO06SM	S Heavy630bar9130psi	6	M12*1.5	17	11	13	28	17	17	9.3*2.2
-GEO08SM		8	M14*1.5	19	11	15	30	19	19	11.3*2.2
-GEO10SM		10	M16*1.5	22	12.5	15	31	22	22	13.3*2.2
-GEO12SM		12	M18*1.5	24	14	17	33	22	24	15.3*2.2
-GEO16SM	400bar5800psi	16	M22*1.5	27	15	18.5	37	27	30	19.3*2.2
-GEO20SM		20	M27*2	32	18.5	20.5	42	32	36	23.6*2.9
-GEO25SM		25	M33*2	41	18.5	23	47	41	46	29.6*2.9
-GEO30SM		30	M42*2	50	19	23.5	50	50	50	38.6*2.9
-GEO38SM	315bar4560psi	38	M48*2	55	21.5	26	57	55	60	44.6*2.9

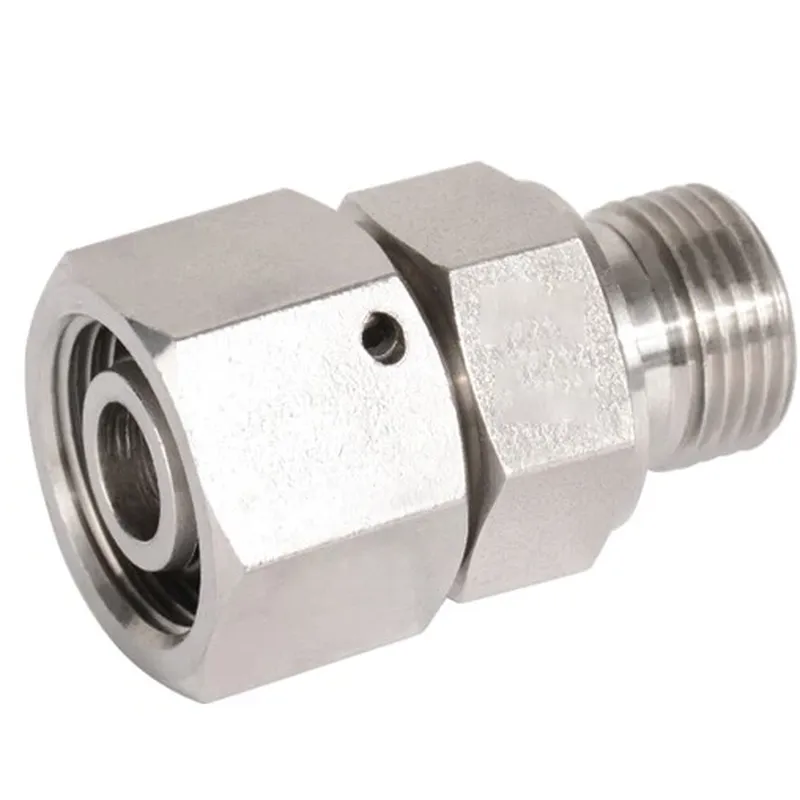

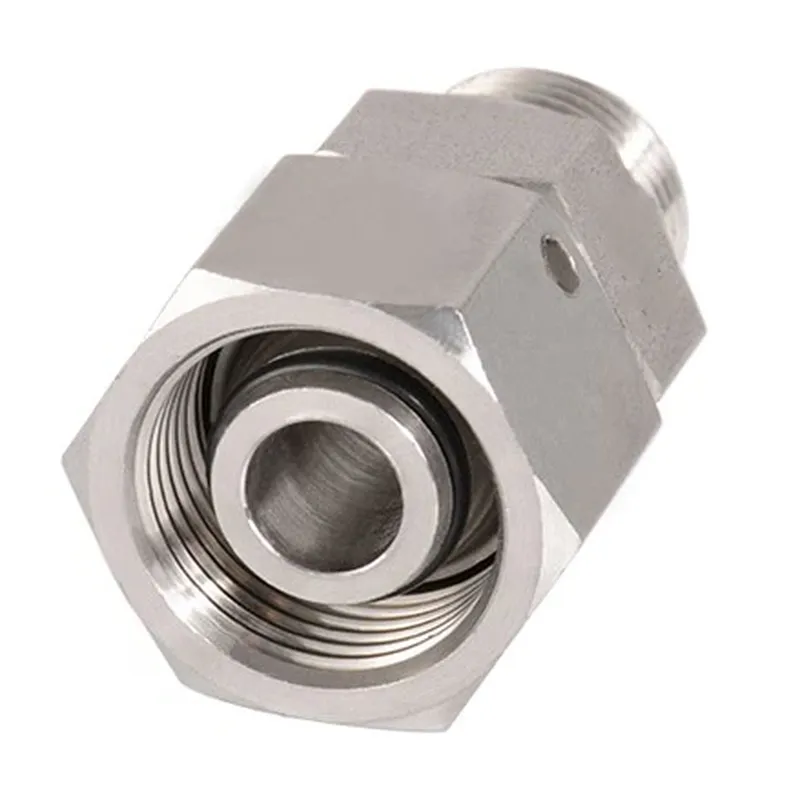

Benefits of Using Male Connector-GEO Hydraulic Fittings:

Using Male Connector-GEO Hydraulic Fitting offers several benefits in hydraulic systems. Here are some key advantages:1. Secure and Leak-Free Connections: Male Connector-GEO provides a reliable and secure connection between hydraulic components. The threaded design ensures a tight fit, minimizing the risk of leaks and fluid loss. This is crucial for maintaining the efficiency and performance of hydraulic systems.2. Wide Range of Options: Male Connector-GEO Hydraulic Fitting offers a wide range of male connectors with different sizes, thread types, and configurations. This allows for greater flexibility in designing and customizing hydraulic systems to meet specific requirements. The availability of diverse options ensures compatibility with various components and fittings.3. High-Quality Materials: Male Connector-GEO is known for its high-quality hydraulic fittings, including male connectors. These connectors are typically made from durable materials such as steel or stainless steel, providing excellent strength and longevity. The robust construction ensures that the connectors can withstand high pressures, vibrations, and harsh operating conditions.4. Industry Standards Compliance: Male Connector-GEO Hydraulic Fitting manufactures its products in accordance with industry standards and regulations. Their male connectors are designed to meet or exceed established standards, ensuring compatibility and interoperability with other hydraulic components. This compliance enhances system integrity and simplifies integration into existing hydraulic setups.5. Easy Installation and Maintenance: Male Connector-GEO Fittings are relatively easy to install and maintain. The threaded design allows for quick and straightforward connection and disconnection of components. This facilitates system assembly, disassembly, and maintenance, reducing downtime and improving overall efficiency.6. Versatility: Male Connector-GEO Hydraulic Fittings are widely used in various industries and applications. They can be found in the automotive, construction, aerospace, and manufacturing sectors, among others. The versatility of male connectors makes them suitable for a broad range of hydraulic systems, offering reliable connections in diverse environments.

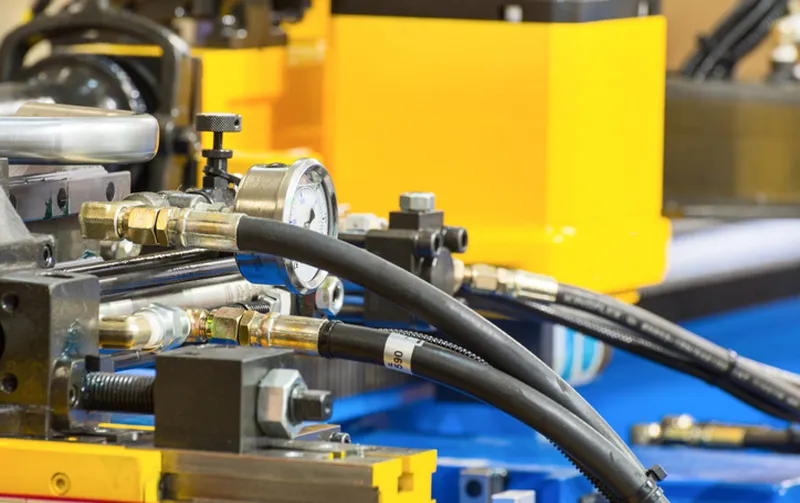

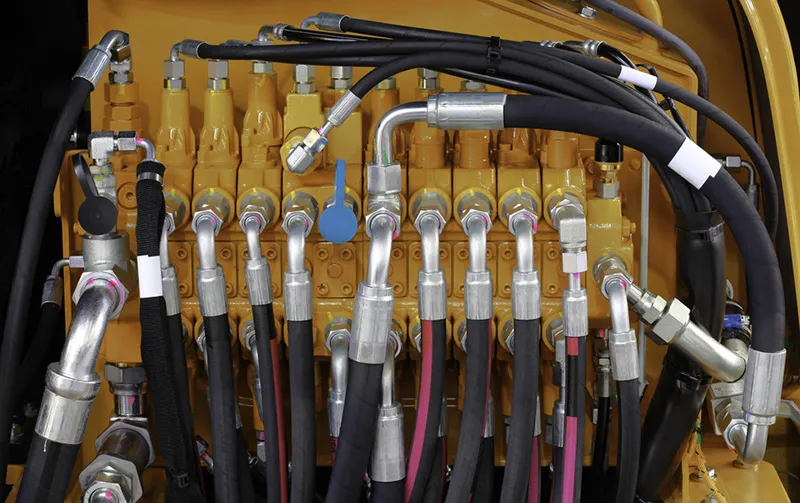

Male Connector-GEO Hydraulic Fitting Installation Instructions:

Installing a male connector from GEO hydraulic fittings requires careful attention to ensure a proper and secure connection. Here are general installation instructions to guide you:Gather the necessary tools: Before starting the installation, gather the tools you'll need, such as wrenches, thread sealant (if required), and any other equipment specified by the hydraulic system manufacturer.Prepare the male connector: Inspect the hydraulic fittings to ensure it is free from any damage or debris. Clean the threaded portion of the male connector using a lint-free cloth to remove any dirt or contaminants.Prepare the female fitting or component: If you are connecting the male connector to a female fitting or component, inspect it for any damage or debris. Clean the internal threads of the female fitting using a lint-free cloth to ensure a clean and smooth surface.Apply thread sealant (if required): Depending on the hydraulic system specifications, you may need to apply thread sealant to the male connector's threads. Follow the manufacturer's recommendations for the appropriate sealant and application method. If thread sealant is not required, proceed to the next step.Insert the male connector: Insert the hydraulic fittings into the female fitting or component, aligning the threads. Begin by hand tightening the male connector to ensure it is properly engaged.Tighten with a wrench: Once the male connector is hand-tightened, use an appropriate wrench to further tighten it. Be cautious not to overtighten, as it can damage the connector or the mating component. Refer to the system specifications or manufacturer's guidelines for the recommended torque value.Check for leaks: After tightening the hydraulic fittings, visually inspect the connection point for any signs of leaks. Additionally, you can perform a pressure test to ensure the connection is secure and leak-free. If you notice any leaks, immediately shut down the hydraulic system and address the issue before proceeding.Complete the installation: Once the hydraulic fittings are properly installed and verified for leaks, proceed with connecting other hydraulic components as required by your system design. Follow the same installation steps for each male connector in the system.
