Raydafon S100 Front Hub Motor E Bike Conversion Kit

[embed]https://youtu.be/Z3rT9dG_4wI[/embed]The Raydafon S100 Front Hub Motor is a top-tier electric bike conversion kit designed with the utmost precision and quality. With its unique design, this kit is an excellent choice for those looking to convert their bicycles into high-performance electric bikes. This kit boasts a brushless design and is available in two styles, S100SWXC and S100SWXDC.

Specification of S100 Front Hub Motor for E-bike

Specification	S100SWXC / S100SWXDC
Diameter (mm)	102±1mm
Width (mm)	100±2mm
Communication	Wireless
Sensor	Wireless Pedal Sensor
Spokes Number	20, 24, 28, 32, 36
Rated Voltage (V)	36V	33V	24V
Maximum Current (A)	6.10A	6.60A	8.90A
Rated Output Power (W)	250W	250W	250W
Maximum Power (W)	300W	300W	300W
Maximum Torque (N·m)	>30N·m	>30N·m	>30N·m
Efficiency (%)	≥88%	≥87%	≥86%
Rated Revolution (r/min)	160-260r/min	160-260r/min	160-260r/min
Weight (kg)	1.6kg	1.6kg	1.6kg

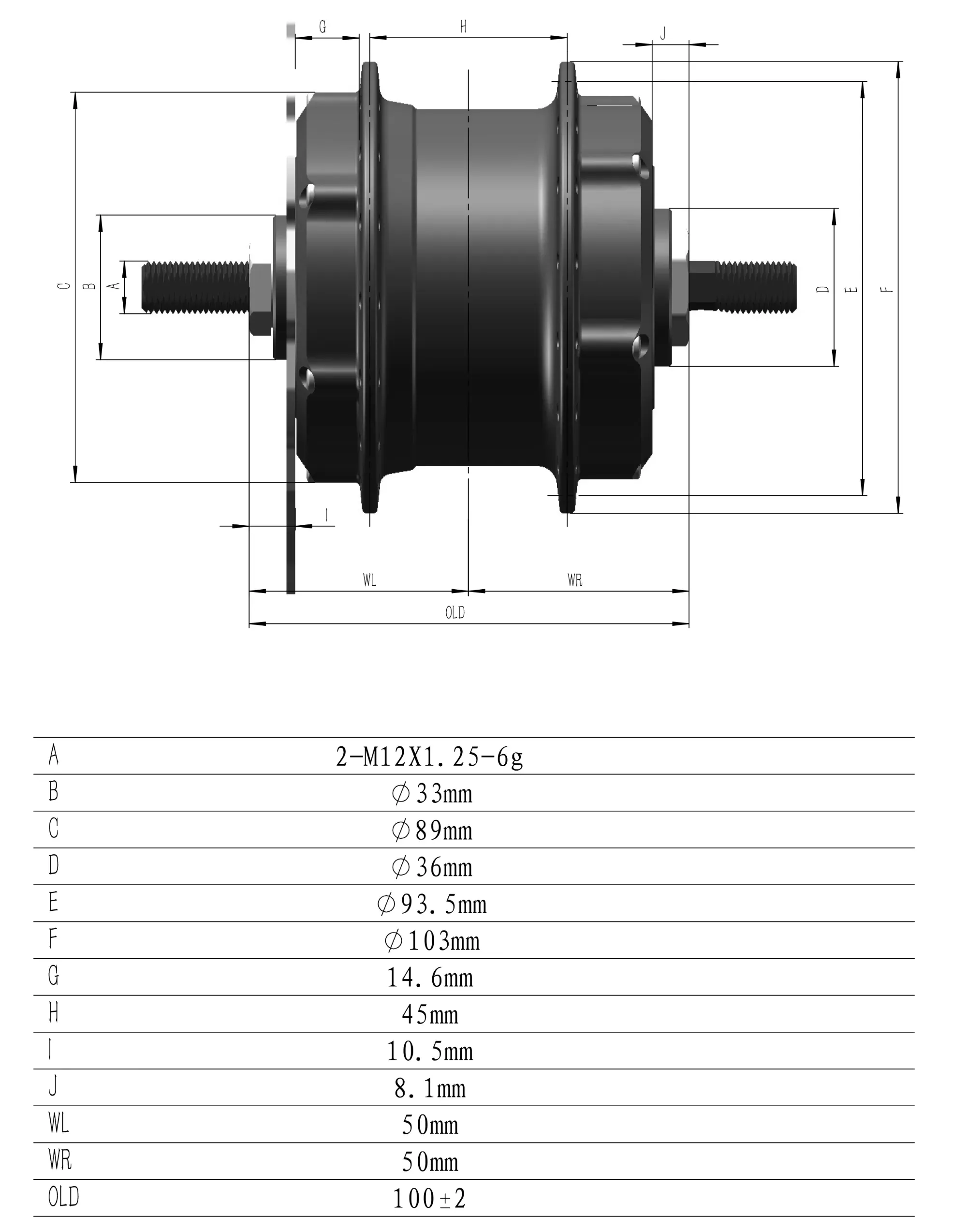

S100 E-bike Front Hub Motor Dimension

Advantages of the Raydafon S100 Front Hub Motor

The Raydafon S100 Front Hub Motor offers a plethora of benefits that make it a superior choice for electric bike conversion. Here are six key advantages:1. Built-in Controller: The built-in controller enhances the functionality of the motor, providing smoother and more efficient power delivery.2. Wireless Pedal Sensor: This feature allows the motor to adjust its output based on the rider's pedaling, optimizing power usage and providing a more intuitive riding experience.3. Light Weight & Small Size: The compact and lightweight design ensures the motor does not add significant weight to your bike, preserving its maneuverability.4. Super-silent: The motor operates very quietly, ensuring a serene and enjoyable ride.5. Easy to Install & Disassemble: The motor is easy to install and disassemble, making maintenance a breeze.6. Wireless Control: The wireless control feature allows for easy adjustment of motor settings, providing a seamless riding experience.Our production facilities are equipped to manufacture this high-quality, high-efficiency front hub motor with precision and care.

Applications of the Raydafon S100 Front Hub Motor

The S100 Front Hub Motor can be applied in various ways, making it an incredibly versatile addition to any bike. Here are six common applications:1. Electric Assist: The motor provides electric assistance while pedaling, reducing rider effort, especially on hills or against headwinds.2. Commuting: The motor's assistance allows commuters to cover longer distances with ease, reducing reliance on traditional transportation methods.3. Hill Climbing: The motor's torque output makes it easier for riders to climb steep hills.4. Cargo and Utility Bikes: The motor is often used in cargo and utility bikes, assisting in hauling heavy loads.5. Recreational Riding: The motor enhances the recreational riding experience by providing an extra power boost.6. Conversion Kits: The motor is commonly used in electric bicycle conversion kits, transforming traditional bikes into electric ones.

How Does the Ebike System S100 Front Hub Motor Work?

The S100 Front Hub Motor operates in a rather straightforward manner. Here's a brief overview of how the system works:1. Motor and Hub Assembly: The motor is integrated into the front wheel of the bicycle, providing direct power to the wheel.2. Power Source: The motor requires a power source, typically a lithium-ion battery pack.3. Pedal Assist Sensors: The system is equipped with pedal assist sensors that detect the rider's pedaling motion.4. Motor Controller: The controller regulates the power output of the motor based on the level of assistance selected by the rider.5. Electric Assistance: When the rider starts pedaling, the motor provides electric assistance.6. Power Output and Control: The motor controller allows the rider to control the level of electric assistance.7. Regenerative Braking: Some versions may include regenerative braking capabilities, which increases the overall efficiency of the system.

Choosing the Right S100 Front Hub Motor for an Electric Bicycle

When choosing the right S100 Front Hub Motor for your electric bicycle, consider the following factors:1. Power and Torque: Assess your riding needs to determine the required power and torque levels.2. Voltage and Battery Compatibility: Ensure the motor's voltage rating aligns with your bike's battery pack.3. Wheel Size: The motor should match your bike's wheel size.4. Installation Compatibility: Check the axle diameter and width to ensure it fits your bike's specifications.5. Weight and Size: Consider the weight and size of the motor and its impact on your bike's performance.6. Efficiency and Noise: Look for high-efficiency motors that operate quietly for a more enjoyable ride.

Maintenance Tips for the S100 Front Hub Motor

Longevity and optimal performance of the S100 Front Hub Motor can be ensured through these maintenance tips:1. Regular Cleaning: Keep the motor clean to prevent buildup of dirt and grime.2. Inspection: Periodically inspect the motor for signs of damage or wear.3. Lubrication: Consult the user manual to determine if lubrication is necessary.4. Battery Maintenance: Properly maintain the battery pack that powers the motor.5. Tighten Fasteners: Regularly check and tighten any fasteners that secure the motor to the bike.6. Avoid Overloading: Do not exceed the motor and bike's recommended weight capacity.7. Avoid Water Exposure: Avoid riding in heavy rain or submerging the motor in water.

Why Choose Raydafon's S100 Front Hub Motor for Ebike System?

Raydafon Electric Technology Co Ltd. is a leading manufacturer of high-end electric bicycle parts. With our dedication to R&D, manufacturing, and worldwide marketing, we continually strive to deliver superior quality products. Our products are CE-certified and protected by domestic and international intellectual property rights. All our products are designed and developed in-house, ensuring you receive only the best.Our range of products includes super-mini intelligent motors, front hub motors, Li-Ion batteries, wireless buttons, and displays. These products can provide electric power support for bicycles while preserving their original appearance and characteristics. This makes riding more convenient, easy, and environmentally friendly.If you are seeking high-end electrical components for electric bicycles, look no further than Raydafon. We sincerely welcome global distributors to visit and negotiate. We look forward to working with you to promote the development of the electric bicycle industry and contribute to environmental protection.Author: Yjx
