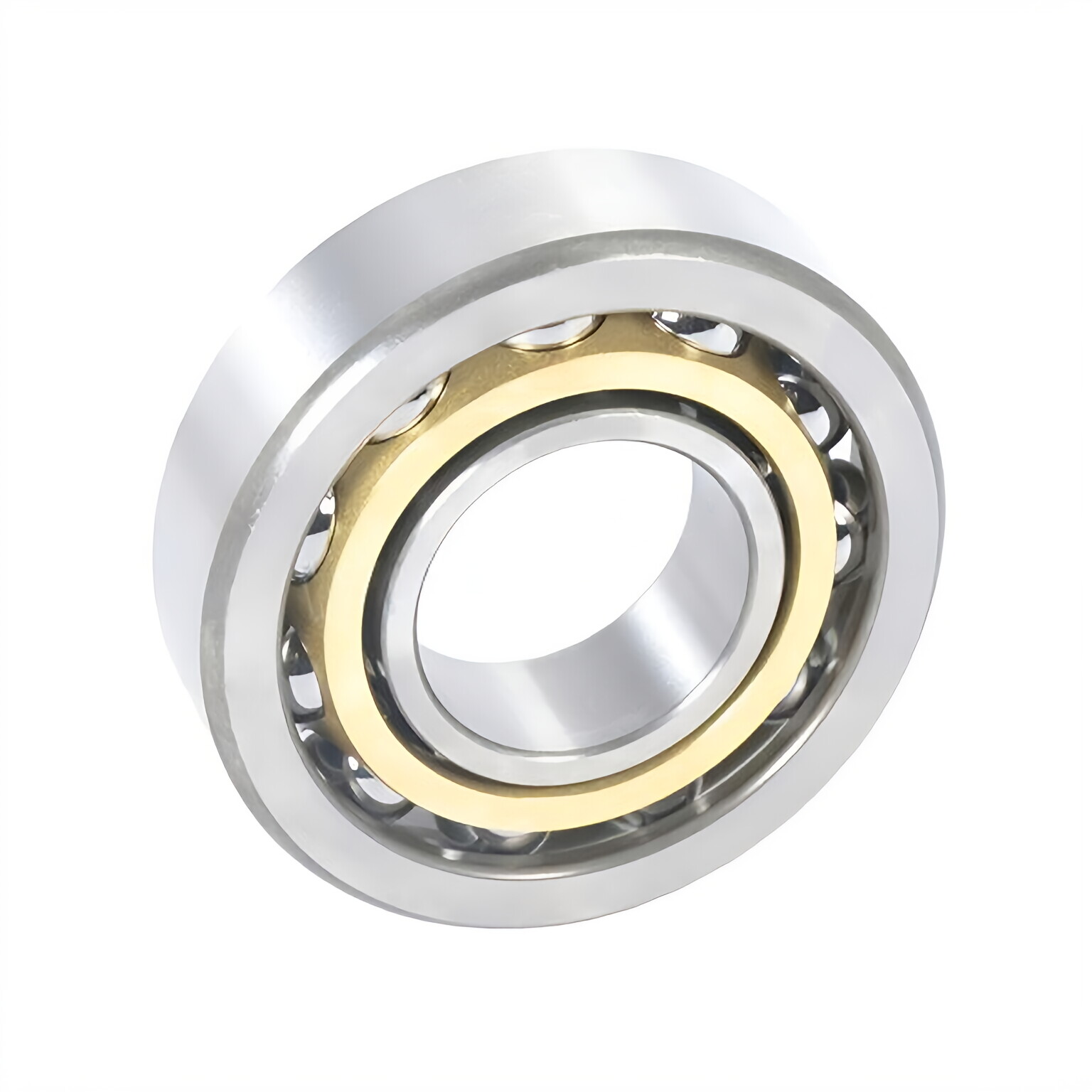

Single Row Angular Contact Ball Bearings

Single Row Angular Contact Ball BearingsSingle row angular contact ball bearings are a common type of angular contact ball bearings. Angular contact ball bearings have raceways in the inner and outer rings displaced relative to each other in the direction of the bearing axis. Single row angular contact ball bearings can only accommodate axial loads in one order. This type of bearing is particularly suitable for carrying combined loads (radial and axial load) and pure axial loads and can be operated at relatively high speeds.

Product parameter

Boundary dimensions(mm)			Mass(kg)	Bearing NO.
d	D	B		Raydafon
10	26	8	0.019	7000C
10	26	8	0.019	7000AC
10	30	9	0.032	7200C
10	30	9	0.032	7200AC
10	30	9	0.03	7200B
10	35	11	0.053	7300C
10	35	11	0.053	7300AC
12	24	6	0.011	7901C
12	24	6	0.011	7901AC
12	28	8	0.021	7001C
12	28	8	0.021	7001AC
12	28	8	0.023	B7001C
12	32	10	0.037	7201C
12	32	10	0.037	7201AC
12	32	10	0.036	7201B
12	37	12	0.06	7301C
12	37	12	0.06	7301AC
12	37	12	0.06	7301B
15	28	7	0.015	7902C
15	28	7	0.015	7902AC

Features of Single Row Angular Contact Ball Bearings

Single row angular contact ball bearings can withstand axial loads in a single direction and larger radial loads. They are inseparable and suitable for high-speed operation. The maximum contact angle is 40°, and the axial load-bearing capacity depends on the contact angle. The rotation speed of this type of bearing is better than that of other types of bearings.When choosing this type of bearing, the key factors to pay attention to are the cage material, pre-tightening force, and clearance.

Single Row Angular Contact Ball Bearings Applications

Single row angular contact ball bearings are mainly used in Industrial pumps, gearboxes, motors, Compressors, Precision Spindle Support, etc.
