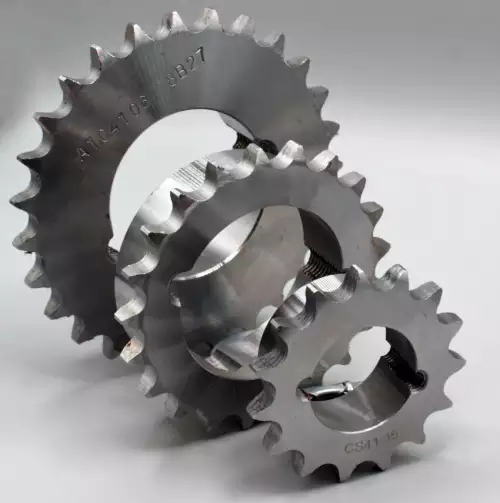

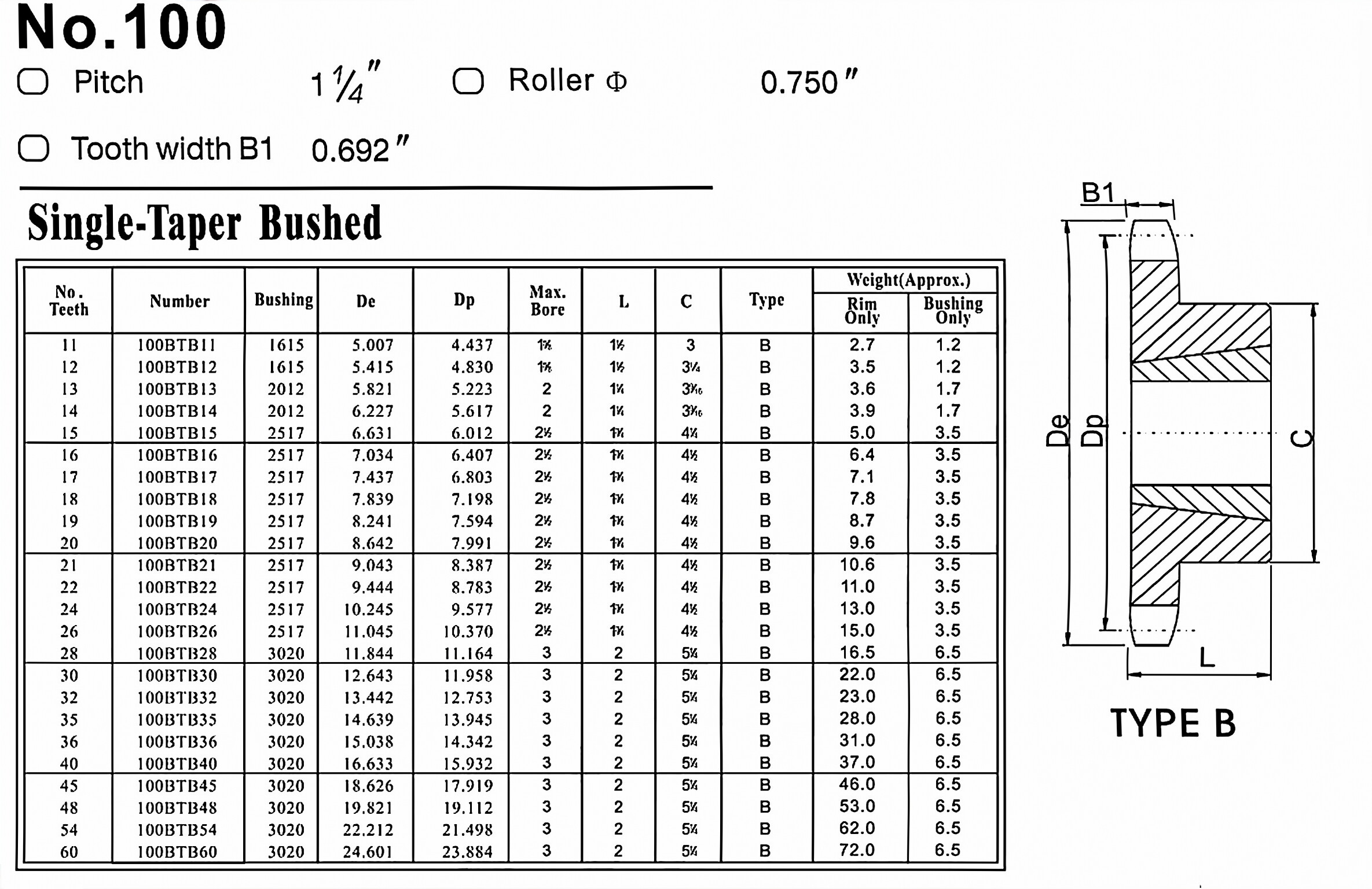

Taper Lock Sprocket No.100 American Standard

Taper Lock Sprocket No.100 American Standard

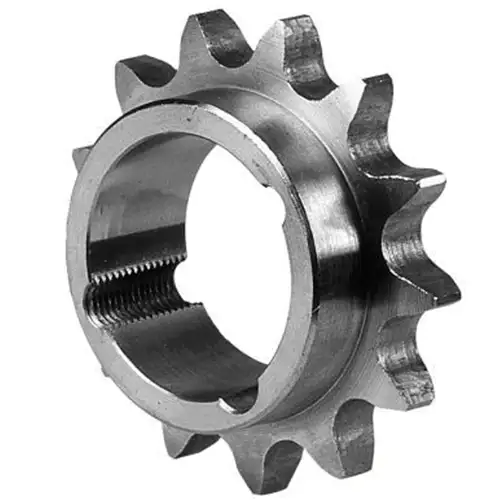

The Taper Lock Sprocket No.100 American Standard is a type of sprocket that is commonly used in power transmission systems. It is designed with a tapered bore and can be easily mounted on a shaft by using a taper lock bushing.

Definition and Basic Structure

A taper lock sprocket is a mechanical device used in power transmission systems to transmit rotary motion between two shafts. It consists of a toothed wheel with a tapered bore and a hub with a matching taper. The hub is mounted on the shaft using a taper lock bushing, providing a secure and precise connection.

Features and Functions

1. Easy Installation: The taper lock sprocket is designed for easy installation. The taper lock bushing allows for quick and hassle-free mounting on the shaft.
2. High Precision Positioning: The taper lock mechanism ensures accurate positioning of the sprocket on the shaft, minimizing misalignment and enhancing overall system performance.
3. Wide Applicability: Taper lock sprockets are widely used in various industries due to their versatility and compatibility with different shaft sizes.
4. Reliability: The taper lock connection provides a reliable and secure transmission of power, minimizing slippage and ensuring efficient operation.
5. Low Maintenance Cost: Taper lock sprockets require minimal maintenance, reducing downtime and maintenance expenses.

Installation and Removal Process

1. Prepare Tools and Materials: Gather the necessary tools and materials, including the taper lock bushing, wrenches, and cleaning supplies.
2. Clean Shaft and Sprocket Surface: Thoroughly clean the shaft and sprocket surface to ensure a smooth and clean contact area.
3. Place Taper Lock Bushing: Install the taper lock bushing into the sprocket hub, ensuring a tight fit.
4. Install Sprocket: Slide the sprocket onto the shaft, aligning it with the taper lock bushing.
5. Tighten Locking Nut: Use the appropriate tools to tighten the locking nut, securing the sprocket in place.

Manufacturing Process of QD Sprockets

1. Raw Material Preparation: Select high-quality materials suitable for the specific application of the QD sprocket.
2. Material Cutting: Cut the raw material into the desired shape and size.
3. Forging or Casting: Form the sprocket blank through forging or casting processes, depending on the material and design requirements.
4. Machining: Use precision machining techniques to create the tooth profile and other critical features of the sprocket.
5. Teeth Rolling: Roll the teeth of the sprocket to improve their strength and durability.
6. Heat Treatment: Apply heat treatment to enhance the hardness and wear resistance of the sprocket.
7. Surface Treatment: Apply surface coatings or treatments to improve corrosion resistance and aesthetics.
8. Quality Inspection: Perform rigorous quality inspections to ensure the sprocket meets the specified standards and requirements.

Frequently Asked Questions (FAQ)

1. Q: How do I choose the right size of Taper Lock Sprocket No.100 American Standard?

A: The size of the sprocket depends on the application and the shaft diameter. It is important to consult the manufacturer's specifications or seek professional advice to ensure the proper selection.

2. Q: Can the Taper Lock Sprocket No.100 American Standard be reused?

A: Yes, the taper lock mechanism allows for easy installation and removal, making the sprocket reusable.

3. Q: How often should I perform maintenance on the Taper Lock Sprocket No.100 American Standard?

A: Regular inspection and maintenance are recommended to ensure optimal performance. The frequency of maintenance depends on the operating conditions and the manufacturer's recommendations.

4. Q: Can I use a Taper Lock Sprocket No.100 American Standard with a different taper lock bushing?

A: It is essential to use the specified taper lock bushing that matches the sprocket's bore taper to ensure a secure and reliable connection.

5. Q: Are Taper Lock Sprockets No.100 American Standard suitable for high-speed applications?

A: Taper lock sprockets are designed to handle various operating speeds. However, it is important to consider the specific requirements and consult the manufacturer's recommendations for high-speed applications.

Author: Miya
