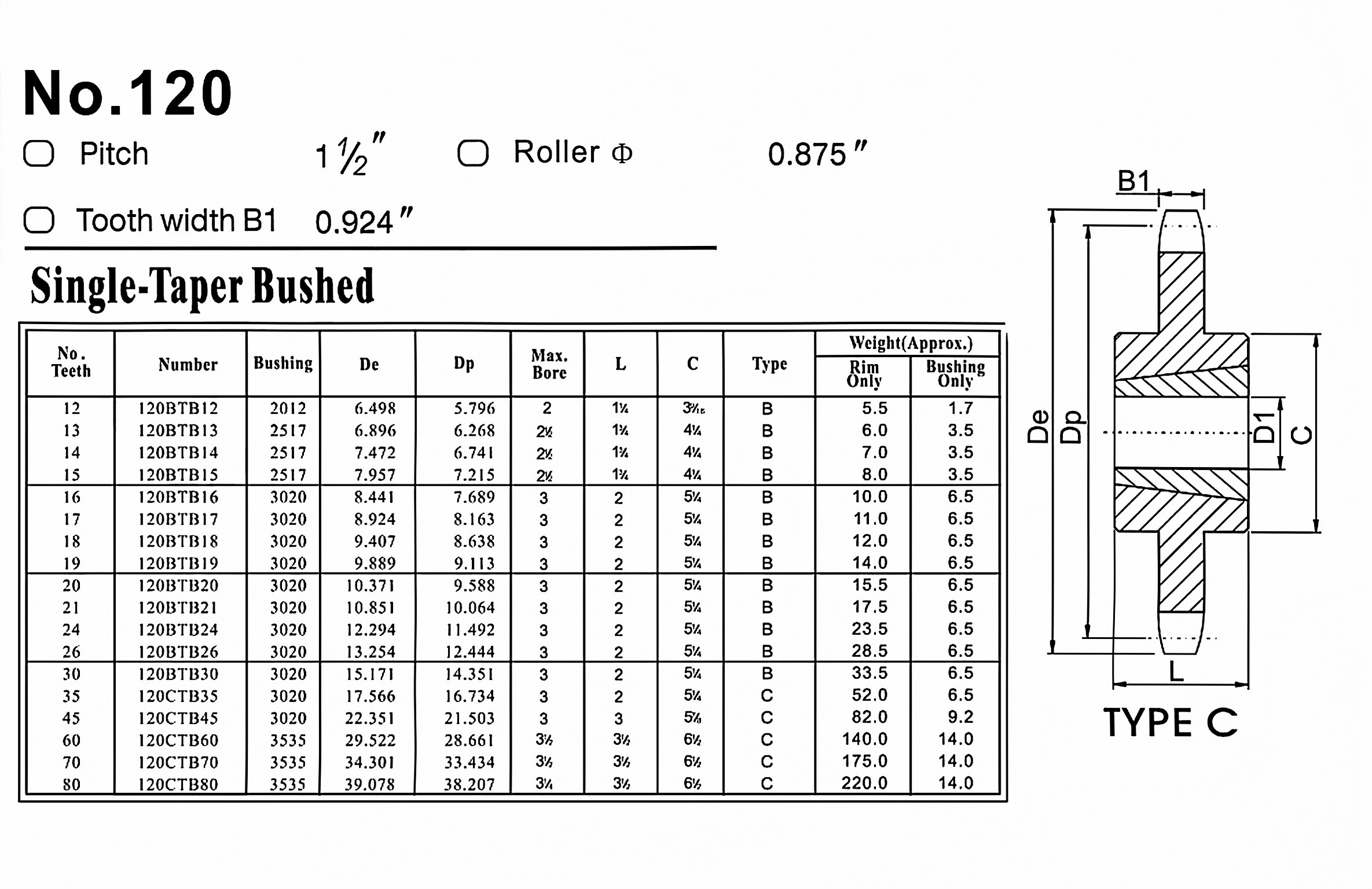

Taper Lock Sprocket No.120 American Standard

Taper Lock Sprocket No.120 American Standard

The Taper Lock Sprocket No.120 American Standard is a type of sprocket that utilizes the taper lock design for easy installation and removal. It is commonly used in power transmission systems to transmit rotational motion between shafts.

Taper Lock Sprocket: Definition and Basic Structure

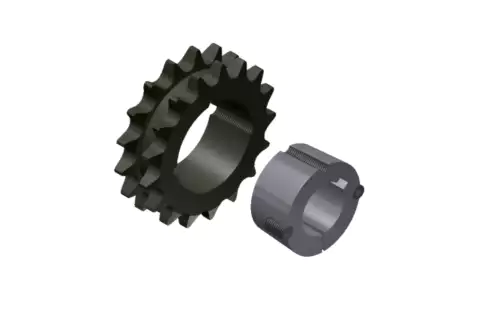

A taper lock sprocket is a mechanical device that consists of a toothed wheel with a tapered bore and a bushing. The taper lock bushing allows for easy mounting and dismounting of the sprocket on a shaft.

Characteristics and Functions of Taper Lock Sprocket

• Easy Installation: The taper lock design enables quick and hassle-free installation of the sprocket on the shaft.
• High Precision Positioning: Taper lock sprockets provide accurate positioning of the sprocket on the shaft, ensuring smooth and efficient power transmission.
• Wide Applicability: These sprockets are suitable for a wide range of applications in various industries.
• Reliability: Taper lock sprockets are known for their reliability and long service life.
• Low Maintenance Cost: The simple design of taper lock sprockets minimizes maintenance requirements and reduces associated costs.

Taper Lock Sprocket Installation and Removal Process

The installation and removal of a taper lock sprocket involve the following steps:

1. Prepare Tools and Materials: Gather the necessary tools and materials required for the installation process.
2. Clean Shaft and Sprocket Surface: Ensure that the shaft and sprocket surface are clean and free from any debris or contaminants.
3. Place Taper Lock Bushing: Insert the taper lock bushing into the sprocket bore, ensuring a proper fit.
4. Install Sprocket: Slide the sprocket onto the shaft, aligning it with the taper lock bushing.
5. Tighten Locking Nut: Use the appropriate tool to tighten the locking nut, securely fastening the sprocket to the shaft.

Manufacturing Process of QD Sprockets

The manufacturing process of QD sprockets involves the following steps:

1. Raw Material Preparation: Select high-quality materials for the sprocket production process.
2. Cutting: Cut the raw material into the desired shape and size.
3. Forging or Casting: Form the sprocket through either forging or casting methods.

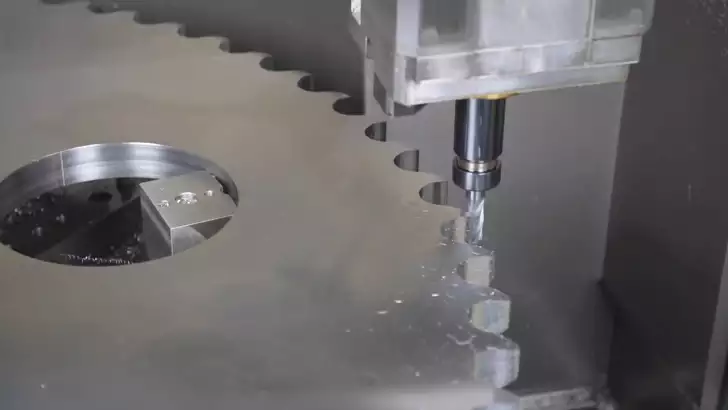

4. Machining: Use precision machining techniques to shape and finish the sprocket.
5. Teeth Rolling: Create the sprocket teeth through a rolling process.
6. Heat Treatment: Apply heat treatment to enhance the sprocket's hardness and durability.
7. Surface Treatment: Apply surface treatment, such as coating or plating, to protect the sprocket from corrosion.
8. Quality Inspection: Conduct rigorous quality inspections to ensure the sprocket meets the required standards.

Frequently Asked Questions (FAQ)

1. Q: How do I choose the right size of Taper Lock Sprocket?
   A: To select the correct size, consider factors such as the shaft diameter, pitch circle diameter, and the number of teeth required for your application.
2. Q: Can a taper lock sprocket be used with different shaft sizes?
   A: Yes, the taper lock bushing allows for easy adaptation to different shaft sizes, providing flexibility in various applications.
3. Q: Are taper lock sprockets suitable for high-speed applications?
   A: Yes, taper lock sprockets are designed to handle high-speed operations while maintaining precision and reliability.
4. Q: How often should I lubricate a taper lock sprocket?
   A: Regular lubrication is recommended to ensure smooth operation and prolong the sprocket's lifespan. Refer to the manufacturer's guidelines for specific lubrication intervals.
5. Q: Can a taper lock sprocket be reused?
   A: Yes, taper lock sprockets can be reused multiple times, thanks to the easy installation and removal process provided by the taper lock design.

Author: Miya
