Taper Lock Sprocket No.140 American Standard

Taper Lock Sprocket No.140 American Standard

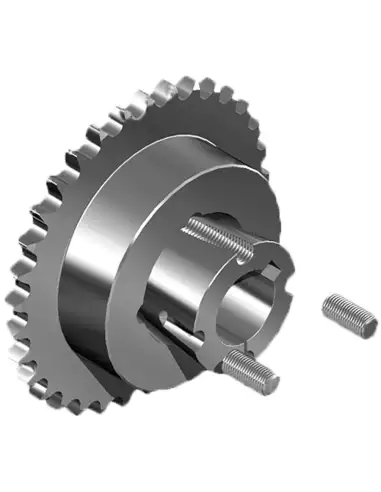

Taper Lock Sprocket No.140 American Standard is a type of sprocket that is commonly used in power transmission systems. It is designed with a taper lock bushing to ensure a secure and reliable connection between the sprocket and the shaft. The taper lock system allows for easy installation and removal of the sprocket, making it a convenient choice for many industrial applications.

Definition and Basic Structure

A taper lock sprocket is a type of sprocket that has a tapered bore to accommodate the taper lock bushing. The basic structure of a taper lock sprocket consists of teeth that mesh with the chain, a hub that connects the sprocket to the shaft, and a taper lock bushing that provides a secure connection.

Characteristics and Functions

Taper lock sprockets have several key characteristics and functions:

1. Easy Installation: The taper lock system allows for quick and easy installation of the sprocket onto the shaft.
2. High Precision Positioning: The taper lock bushing ensures accurate positioning of the sprocket on the shaft, minimizing misalignment and reducing wear.
3. Wide Applicability: Taper lock sprockets are widely used in various industries and applications due to their versatility.
4. Reliability: The taper lock system provides a secure and reliable connection, minimizing the risk of slippage or disengagement.
5. Low Maintenance Cost: Taper lock sprockets require minimal maintenance, reducing downtime and overall maintenance costs.

One notable advantage of taper lock sprockets is their ease of installation and removal. The taper lock bushing allows for effortless mounting and dismounting of the sprocket, saving time and effort during maintenance or replacement.

Installation and Removal Process

The installation and removal process of a taper lock sprocket involves the following steps:

1. Prepare Tools and Materials: Gather the necessary tools and materials, including the taper lock bushing, key, and wrench.
2. Clean Shaft and Sprocket Surface: Ensure that the shaft and sprocket surface are clean and free from any debris or contaminants.
3. Place Taper Lock Bushing: Slide the taper lock bushing onto the shaft, making sure it is properly positioned.
4. Install Sprocket: Align the sprocket with the taper lock bushing and slide it onto the shaft until it is snugly fitted.
5. Tighten Locking Nut: Use a wrench to tighten the locking nut, ensuring that the sprocket is securely fastened to the taper lock bushing.

QD Sprocket Manufacturing Process

The manufacturing process of QD sprockets involves the following steps:

1. Prepare Raw Materials: Select high-quality materials that are suitable for sprocket production.
2. Cutting: Cut the raw material into the desired shape and size.
3. Forging or Casting: Form the sprocket through either forging or casting, depending on the manufacturing technique used.
4. Machining: Use various machining processes to refine the shape, dimensions, and teeth of the sprocket.
5. Gear Cutting: Cut the teeth of the sprocket using specialized gear cutting tools.
6. Heat Treatment: Apply heat treatment to enhance the hardness and durability of the sprocket.
7. Surface Treatment: Apply surface treatments such as plating or coating to improve corrosion resistance.
8. Quality Inspection: Conduct rigorous quality inspections to ensure that the sprocket meets the required specifications and standards.

Frequently Asked Questions (FAQ)

1. Q: What is the maximum torque the Taper Lock Sprocket No.140 American Standard can handle?

A: The maximum torque that the Taper Lock Sprocket No.140 American Standard can handle depends on various factors such as the material used, the sprocket size, and the application. It is recommended to consult the manufacturer's specifications for the specific sprocket in question.

2. Q: Can the Taper Lock Sprocket No.140 American Standard be used in high-speed applications?

A: Yes, the Taper Lock Sprocket No.140 American Standard is designed to handle high-speed applications. However, it is important to consider factors such as the maximum RPM (rotations per minute) and the load capacity to ensure safe and efficient operation.

3. Q: Can I install a taper lock sprocket without a taper lock bushing?

A: No, the taper lock sprocket requires a taper lock bushing for proper installation and secure connection. Attempting to install the sprocket without the bushing may result in misalignment, slippage, or damage to the sprocket or shaft.

4. Q: How often should I lubricate the Taper Lock Sprocket No.140 American Standard?

A: The frequency of lubrication depends on factors such as the operating conditions, the load, and the environment. It is recommended to follow the manufacturer's guidelines for lubrication intervals and use a suitable lubricant to ensure optimal performance and longevity.

5. Q: Can I reuse a taper lock bushing?

A: It is generally not recommended to reuse a taper lock bushing. Taper lock bushings are designed for a single-use installation and may not provide the same level of secure connection if reused. It is best to replace the taper lock bushing whenever a new sprocket is installed.

Author: Miya
