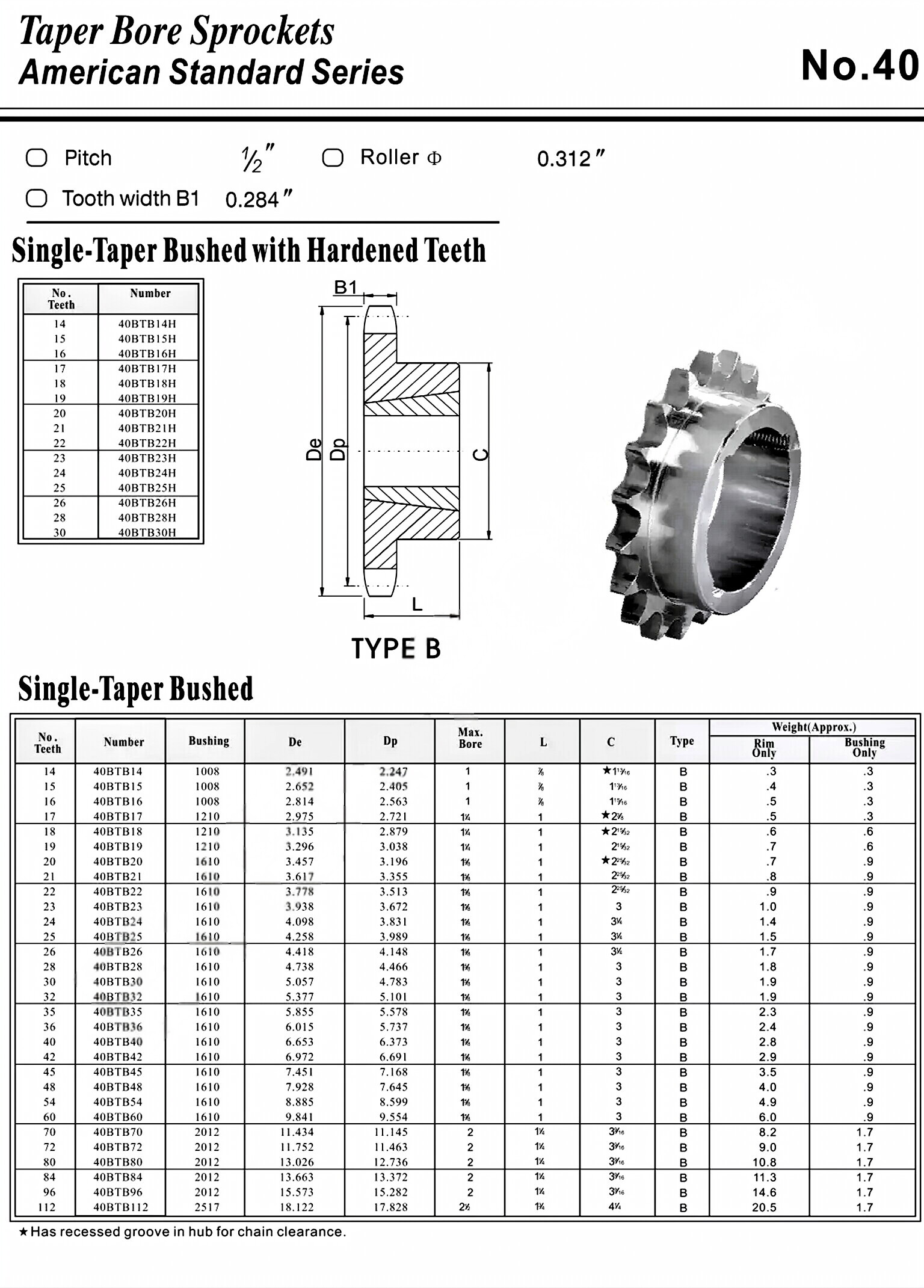

Taper Lock Sprocket No.40 American Standard

Taper Lock Sprocket No.40 American Standard

Taper Lock Sprocket No.40 American Standard is a type of sprocket used in power transmission systems. It is designed with a taper bore and is attached to the shaft using a taper lock bushing. This type of sprocket is widely used in various industrial applications due to its precise positioning and reliability.

Definition and Basic Structure of Taper Lock Sprocket

A taper lock sprocket is a type of sprocket that has a tapered bore and is attached to a shaft using a taper lock bushing. The basic structure of a taper lock sprocket consists of a hub, a toothed wheel, and a taper lock bushing.

Features and Functions of Taper Lock Sprocket

• Easy to Install: Taper lock sprockets are easy to install and remove due to the use of a taper lock bushing.
• High Precision Positioning: The taper lock bushing allows for high precision positioning of the sprocket on the shaft.
• Wide Applicability: Taper lock sprockets can be used in a wide range of industrial applications.
• Reliability: Taper lock sprockets are reliable and can withstand heavy loads and harsh operating conditions.
• Low Maintenance Cost: Taper lock sprockets have a low maintenance cost due to their simple design and easy installation.

The advantage of easy installation and removal is particularly important as it saves time and effort during maintenance and repair work. Taper lock sprockets are commonly used in conveyor systems, agricultural equipment, and industrial machinery.

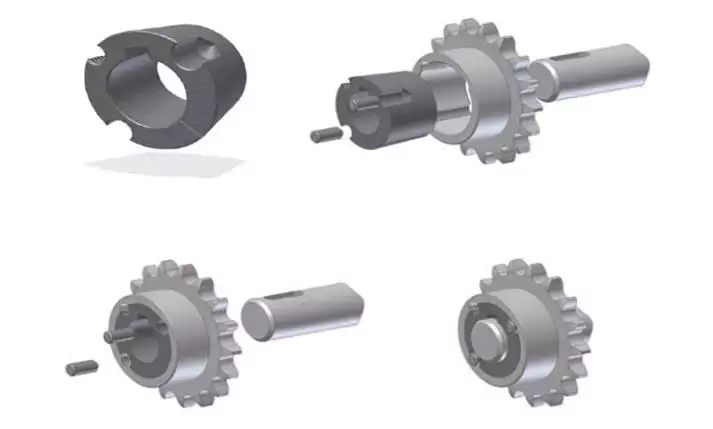

Installation and Removal Process of Taper Lock Sprocket

The installation and removal process of a taper lock sprocket can be carried out in the following steps:

1. Prepare Tools and Materials: Gather the necessary tools and materials including a torque wrench, taper lock bushing, and sprocket.
2. Clean Shaft and Sprocket Surface: Clean the shaft and sprocket surface to remove any dirt or debris.
3. Place Taper Lock Bushing: Place the taper lock bushing onto the shaft and secure it using the set screws.
4. Install Sprocket: Slide the sprocket onto the taper lock bushing and align it with the shaft.
5. Tighten Locking Nut: Tighten the locking nut using a torque wrench to the manufacturer's recommended torque specification.

It is important to follow the manufacturer's instructions and torque specifications during the installation and removal process to ensure safe and reliable operation of the system.

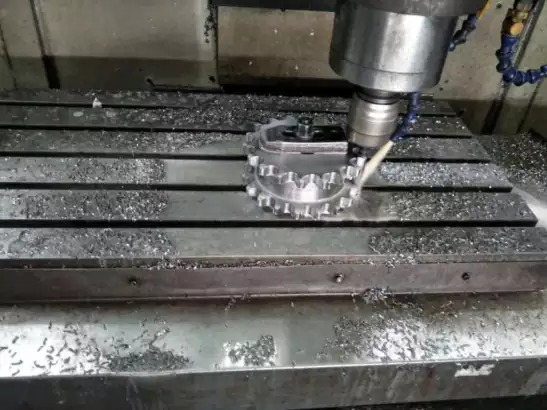

QD Sprocket Manufacturing Process

The manufacturing process of QD sprockets involves the following steps:

1. Prepare Raw Materials: Select and prepare the raw materials needed for the manufacturing process.
2. Cutting: Cut the raw materials into suitable sizes for the sprocket.
3. Forging or Casting: Forge or cast the sprocket to shape and size.
4. Machining: Machine the sprocket teeth and bore to the required specifications.
5. Rolling: Roll the sprocket teeth to improve their strength and wear resistance.
6. Heat Treatment: Heat treat the sprocket to improve its hardness and durability.
7. Surface Treatment: Apply surface treatment to improve the sprocket's corrosion resistance and appearance.
8. Quality Inspection: Inspect the sprocket for quality and ensure it meets the required specifications.

FAQ

1. What is a taper lock bushing?
   A taper lock bushing is a device used to attach a sprocket to a shaft. It has a tapered bore that matches the taper of the sprocket and allows for easy installation and removal.
2. What are the benefits of using a taper lock sprocket?
   Taper lock sprockets are easy to install and remove, have high precision positioning, are widely applicable, and have low maintenance costs.
3. What are the common applications of taper lock sprockets?
   Taper lock sprockets are commonly used in conveyor systems, agricultural equipment, and industrial machinery.
4. What are the important steps in the installation process of a taper lock sprocket?
   The important steps in the installation process of a taper lock sprocket include preparing tools and materials, cleaning the shaft and sprocket surface, placing the taper lock bushing, installing the sprocket, and tightening the locking nut.
5. What is the manufacturing process of QD sprockets?
   The manufacturing process of QD sprockets includes preparing raw materials, cutting, forging or casting, machining, rolling, heat treatment, surface treatment, and quality inspection.

Author: Miya
