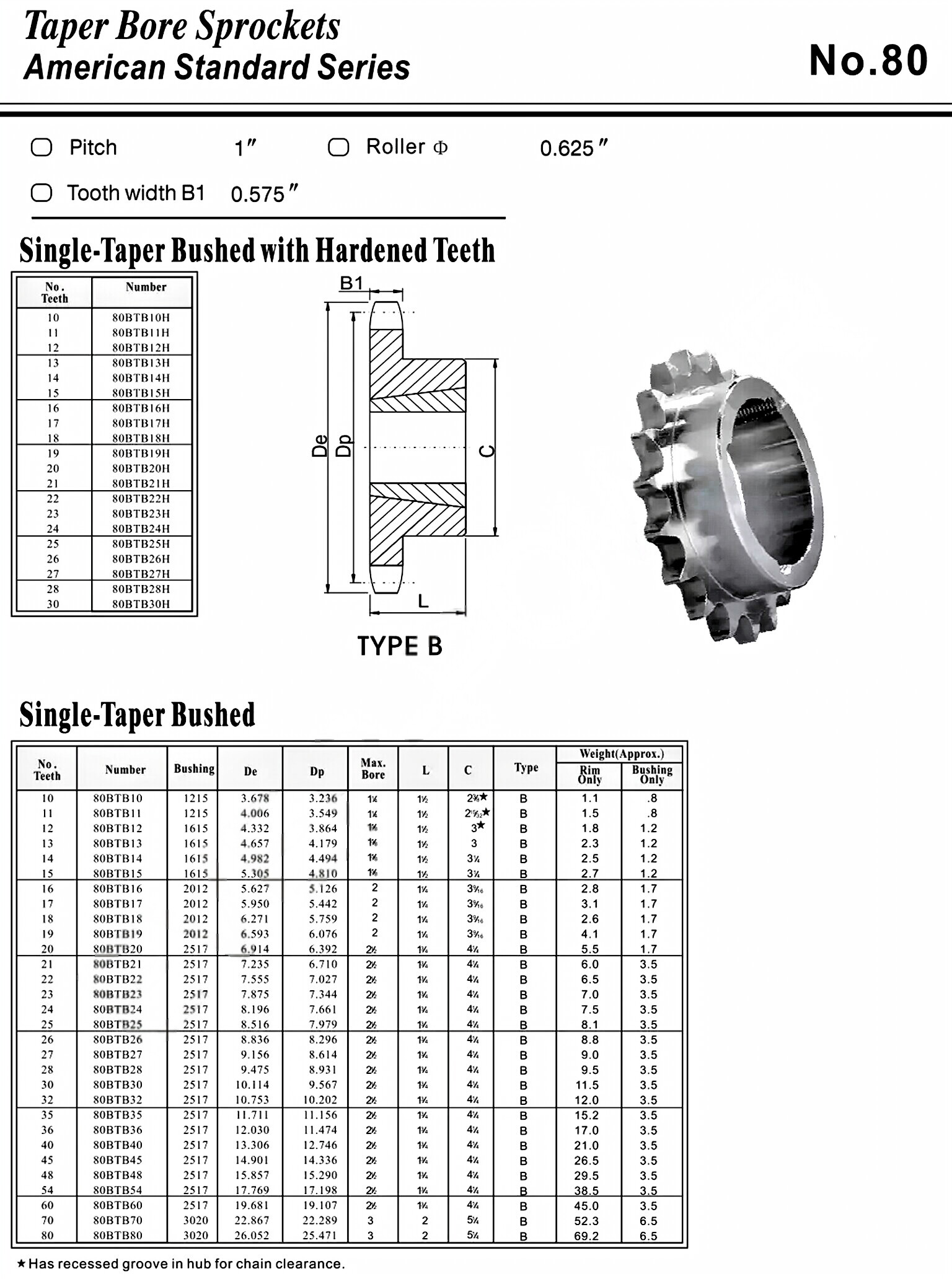

Taper Lock Sprocket No.80 American Standard

Taper Lock Sprocket No.80 American Standard

Taper Lock Sprocket No.80 American Standard is a type of sprocket commonly used in power transmission systems. The basic concept of a taper lock sprocket is to allow for easy installation and removal without the need for additional equipment or specialized training. This is achieved through the use of a tapered bushing that fits snugly into the sprocket's bore, securing it in place and providing a high level of accuracy and reliability.

Definition and Basic Structure

A taper lock sprocket is a type of sprocket that utilizes a tapered bore and bushing to provide a secure and accurate fit to the shaft. The basic structure of a taper lock sprocket consists of a sprocket with a tapered bore, a tapered bushing that fits into the bore, and a locking mechanism that secures the bushing in place.

Features and Applications

• Easy to install: The use of a taper lock bushing allows for quick and easy installation without the need for additional equipment or specialized training.
• High precision positioning: The tapered bushing provides a high level of accuracy and precision, ensuring that the sprocket fits securely and accurately to the shaft.
• Wide applicability: Taper lock sprockets are widely used in power transmission systems across various industries.
• Reliability: The design of taper lock sprockets ensures a high level of reliability and durability, reducing the need for maintenance and replacement.
• Low maintenance costs: Taper lock sprockets require minimal maintenance, reducing the overall cost of ownership.

Easy to Install and Remove

The use of a taper lock bushing allows for easy installation and removal of the sprocket. Simply slide the bushing into the tapered bore, align the sprocket to the shaft, and tighten the locking mechanism. Removal is just as easy, simply loosen the locking mechanism and slide the sprocket off the shaft.

Installation and Removal Process

1. Prepare tools and materials: Make sure you have all the necessary tools and materials on hand before beginning the installation process.
2. Clean shaft and sprocket surfaces: Ensure that the shaft and sprocket surfaces are free from dirt, debris, and other contaminants.
3. Place taper lock bushing: Slide the taper lock bushing into the sprocket's tapered bore.
4. Install sprocket: Align the sprocket onto the shaft and slide it onto the taper lock bushing.
5. Tighten locking nut: Use a torque wrench to tighten the locking nut to the manufacturer's recommended torque settings.

QD Sprocket Manufacturing Process

The manufacturing process of a QD sprocket involves several stages, including:

1. Prepare raw materials: Select high-quality steel and other materials for the manufacturing process.
2. Cut to size: The raw material is cut to the desired size and shape.
3. Forging or casting: The material is either forged or cast into the desired shape.
4. Machining: The sprocket is machined to the desired specifications and tolerances.
5. Rolling teeth: The teeth of the sprocket are rolled to ensure consistent quality and precision.
6. Heat treatment: The sprocket is heat-treated to enhance its strength and durability.
7. Surface treatment: The sprocket's surface is treated to prevent rust and corrosion.
8. Quality inspection: The sprocket undergoes a thorough quality inspection to ensure it meets the manufacturer's specifications and industry standards.

FAQ

1. What is a taper lock sprocket?
   A taper lock sprocket is a type of sprocket that utilizes a tapered bore and bushing to provide a secure and accurate fit to the shaft.
2. What are the advantages of using a taper lock sprocket?
   The advantages of using a taper lock sprocket include easy installation and removal, high precision positioning, wide applicability, reliability, and low maintenance costs.
3. What is the installation process for a taper lock sprocket?
   The installation process for a taper lock sprocket involves preparing tools and materials, cleaning the shaft and sprocket surfaces, placing the taper lock bushing, installing the sprocket, and tightening the locking nut.
4. What is the manufacturing process for a QD sprocket?
   The manufacturing process for a QD sprocket involves several stages, including preparing raw materials, cutting to size, forging or casting, machining, rolling teeth, heat treatment, surface treatment, and quality inspection.
5. What industries use taper lock sprockets?
   Taper lock sprockets are used across various industries, including agriculture, mining, and manufacturing.

Author: Miya
