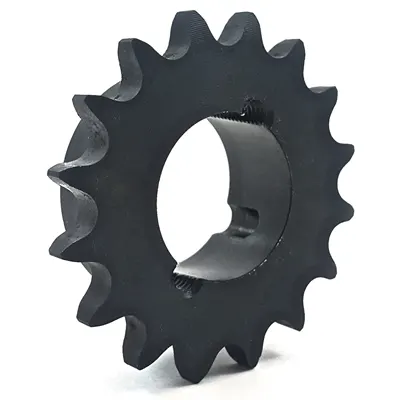

#35 Taper Bushed Roller Chain Sprocket

#35 Taper Bushed Roller Chain Sprocket

Trust our quality assurance process for #35 roller chain sprockets from roller chain. We offer a variety of materials, including plastic, stainless steel, and black-oxide-coated hardened metal. Our products support various industries, including government entities, small businesses, OEMs, and major resellers.In our inventory, every top configuration, including #35 roller chain sprockets with taper bushed designs. Each sprocket features precision-cut teeth, ensuring your assembly operates smoothly throughout the workday.Explore our extensive selection of #35 roller chain sprockets! We offer various designs, including taper bushed, H-bushed, A-plate, B-hub, C-hub, and split types. You’ll also find idler parts in our sprocket collection.Our parts are designed for universal compatibility, providing you with unmatched versatility. Each sprocket is made from hardened steel, ensuring durability and reliable performance for your daily operations.With tooth quantities ranging from 15 to over 50, our #35 sprockets are perfect for keeping your machinery running smoothly.

#35 Taper Bushed Roller Chain Sprocket Parameter:

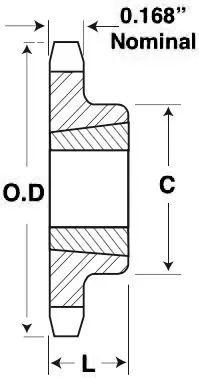

Part#	Tooth Count	Bushing Used	Outside Diameter (O.D.)	Pitch Diameter (P.D.)	Length Through Bore (Dimension L)	Hub Diameter (Dimension C)	Weight (Lbs.)
35BTB18	18	1008	2.352"	2.159"	7/8"	1-7/8"	0.4
35BTB19	19	1008	2.472"	2.278"	7/8"	1-13/16"	0.5
35BTB20	20	1008	2.593"	2.397"	7/8"	1-15/16"	0.6
35BTB21	21	1008	2.713"	2.516"	7/8"	2-1/16"	0.7
35BTB22	22	1210	2.883"	2.635"	1"	2-3/8"	0.8
35BTB23	23	1210	2.954"	2.754"	1"	2-7/16"	0.9
35BTB24	24	1210	3.074"	2.873"	1"	2-7/16"	0.9
35BTB25	25	1210	3.194"	2.992"	1"	2-7/16"	1.2
35BTB26	26	1610	3.314"	3.111"	1"	2-7/8"	1.1
35BTB28	28	1610	3.553"	3.349"	1"	2-7/8"	1.2
35BTB30	30	1610	3.793"	3.588"	1"	3-1/8"	1.2
35BTB32	32	1610	4.032"	3.826"	1"	3-1/4"	1.3
35BTB35	35	1610	4.392"	4.183"	1"	3-1/4"	1.4
35BTB36	36	1610	4.511"	4.303"	1"	3-1/4"	1.4
35BTB40	40	1610	4.990"	4.786"	1"	3-1/4"	1.9
35BTB42	42	1610	5.229"	5.018"	1"	3-1/4"	2
35BTB45	45	1610	5.588"	5.376"	1"	3-1/4"	2.1
35BTB48	48	1610	5.946"	5.734"	1"	3-1/4"	2.3
35BTB54	54	1610	6.663"	6.449"	1"	3-1/4"	2.6
35BTB60	60	1610	7.380"	7.165"	1"	3-1/4"	3
35BTB70	70	1610	8.575"	8.358"	1"	3-1/4"	3.7
35BTB72	72	1610	8.814"	8.597"	1"	3-1/4"	3.9
35BTB80	80	1610	9.770"	9.552"	1"	3-1/4"	4.5
35BTB84	84	1610	10.247"	10.029"	1"	3-1/4"	4.9
35BTB96	96	1610	11.680"	11.461"	1"	3-1/4"	6
35BTB112	112	1610	13.590"	13.371"	1"	3-1/4"	7.8

#35 B-Hub Roller Chain Sprocket Characteristic:

Design and Construction

35 taper bushed roller chain sprockets are designed for optimal performance in power transmission systems. The taper bushed configuration allows for a secure mounting option, making them easy to install on shafts or other components. They are often made from high-quality materials such as:

• Plastic: Lightweight and corrosion-resistant, suitable for less demanding applications.
• Stainless Steel: It offers high resistance to corrosion and wear and is ideal for food processing and chemical applications.
• Black-Oxide-Coated Hardened Metal: Provides enhanced durability and protection against rust, commonly used in heavy-duty environments.

Precision Engineering

These sprockets feature precision-cut teeth that ensure smooth engagement with roller chains, reducing wear and tear. This precision contributes to the overall efficiency of the machinery, minimizing downtime and maintenance costs.

Compatibility

#35 sprockets are compatible with standard #35 roller chains, making them versatile for various setups. This compatibility allows for easy replacement and integration into existing systems.

#35 B-Hub Roller Chain Sprocket Application:

Automotive Timing Systems

• Function: In internal combustion engines, roller chain sprockets are part of the timing chain mechanism. They ensure the engine's camshaft and crankshaft rotate in sync, allowing for precise timing of the engine's intake and exhaust valves. This synchronization is crucial for optimal performance and efficiency.

Bicycle Drivetrains

• Function: Sprockets connect to the pedals and rear wheel through bicycle roller chains. When the rider pedals, the front sprocket turns, transferring motion through the chain to the rear sprocket, propelling the bike forward. Different sizes of sprockets allow for various gear ratios, making it easier to climb hills or gain speed.

Conveyor Systems

• Function: Roller chain sprockets drive conveyor belts in industrial settings, facilitating the movement of goods and materials along assembly lines. The sprockets engage with the chain to provide consistent motion, which is essential for efficiently transporting products from one production stage to another.

Agricultural Equipment

• Function: In farming machinery like combines and tractors, roller chain sprockets power various attachments such as plows, seeders, and harvesters. This mechanism allows for efficient equipment operation, improving productivity in planting and harvesting crops.

How Do You Match A Roller Chain To A Sprocket?

Matching a roller chain to a sprocket is essential for optimal performance in mechanical systems. Here’s a step-by-step guide to ensure compatibility:

1. Determine Chain Size

Identify the Chain Type: Common sizes include #25, #40, #50, etc. The number indicates the chain's pitch (distance between pins).Measure the Pitch: Use calipers to measure the distance between the centers of two adjacent pins. This helps confirm the chain size.

2. Check Sprocket Specifications

Sprocket Size: Ensure the sprocket is designed for the same chain size identified (e.g., a #25 sprocket for a #25 chain).Teeth Count: Determine the number of teeth on the sprocket. This affects speed and torque. More teeth provide more torque but reduce speed.

3. Verify Hub Configuration

B-Hub vs. A-Hub: Check if the sprocket’s hub configuration matches your mounting requirements. B-hubs are typically used for more robust applications.

4. Consider Material Compatibility

Material Choices: Ensure the chain and sprocket are made of materials compatible with your application (e.g., stainless steel for corrosion resistance).Load Requirements: Consider the load and wear resistance needed for your application.

5. Examine Chain and Sprocket Alignment

Alignment: Ensure the chain and sprocket align properly to prevent wear and increase efficiency. Misalignment can lead to premature failure.Tension: Proper chain tension is crucial. Too tight or too loose can cause issues.

6. Consult Manufacturer Guidelines

Manufacturer Recommendations: Always refer to the manufacturer's guidelines for both chain and sprocket, as they provide information on compatibility and performance.

7. Test the Setup

After installation, run the system briefly to ensure smooth operation without unusual noises or vibrations.

Roller Chain Sprocket Manufacturer:

We specialize in chain sprockets made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various chain sprockets like conveyor sprockets, QD sprockets, idler sprockets, cast iron sprockets, bushed sprockets, and many others.
