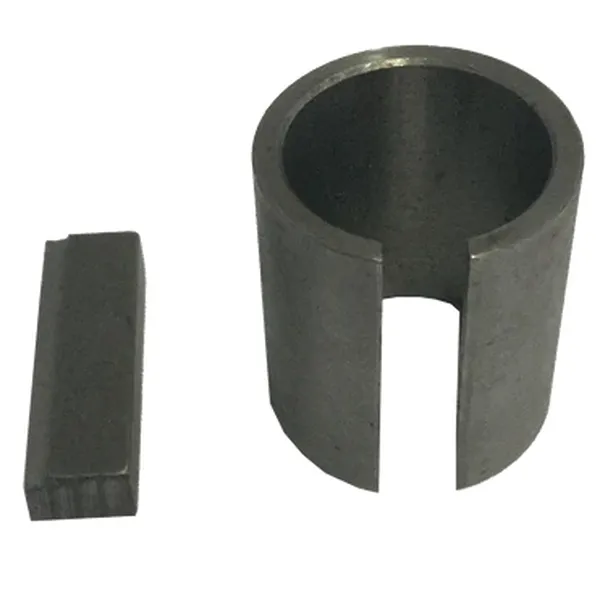

FHP10K Split Taper Bushing

FHP10K Split Taper Bushing

The FHP10K split taper bushing is a type of split taper bushing that is designed for use in drives with lower torque. It is made of steel and has a double-split design that allows it to be easily installed and removed from the shaft. The FHP10K split taper bushing has a 13/16" inside diameter and a 1" outside diameter. It is keyed to the shaft, which helps to lock it in place and prevent it from rotating.FHP10K split taper bushings are used as a hub for pulleys, sprockets, gears, and sheaves. They are typically used in applications where the torque is not too high, such as conveyor belts, fans, and pumps. The FHP10K split taper bushing is a reliable and easy-to-use component that can be used in a variety of applications. It is a good choice for applications where lower torque is required and where easy installation and removal are important.

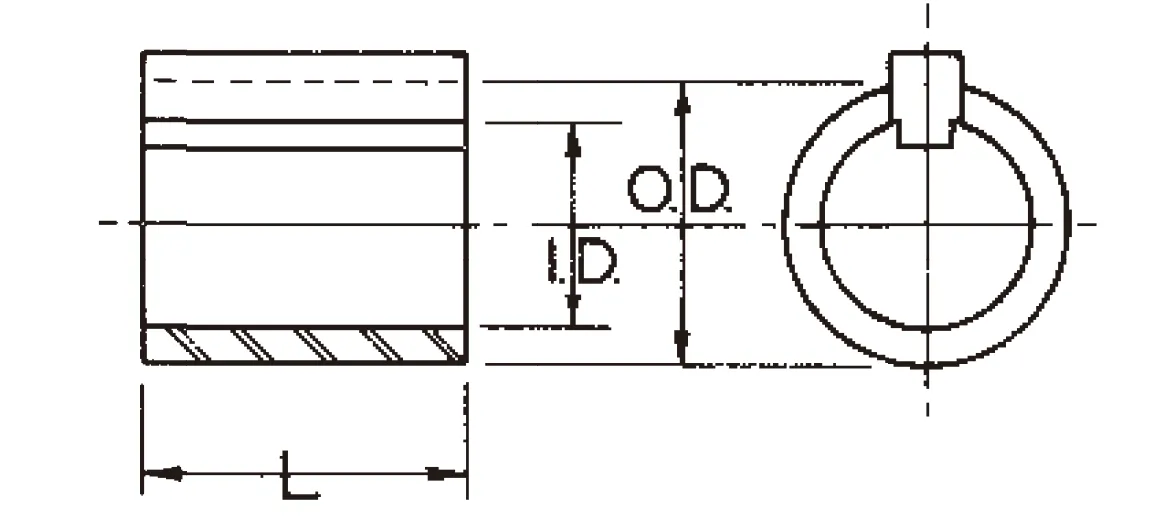

FHP10K Split Taper Bushing Dimensions:

Bushing Part No.	FHP10K Split Taper Bushing
Outside Diameter (O.D.)	1''
Inside Diameter (I.D.)	13/16''
Length	1 1/8''
Keyway Size	1/4'' X 7/32'' — 3/16'' X 3/32''
Bore Type	Finished with Keyway
Material	Steel
Application	Mounting of various FHP drive components, including sheaves, pulleys, and sprockets.

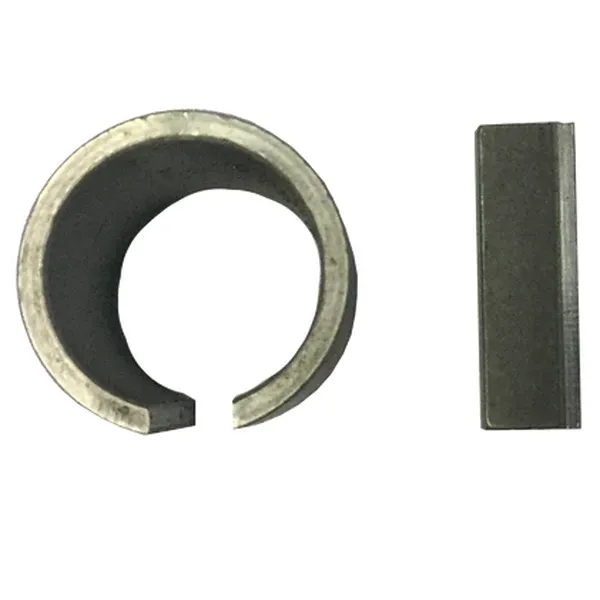

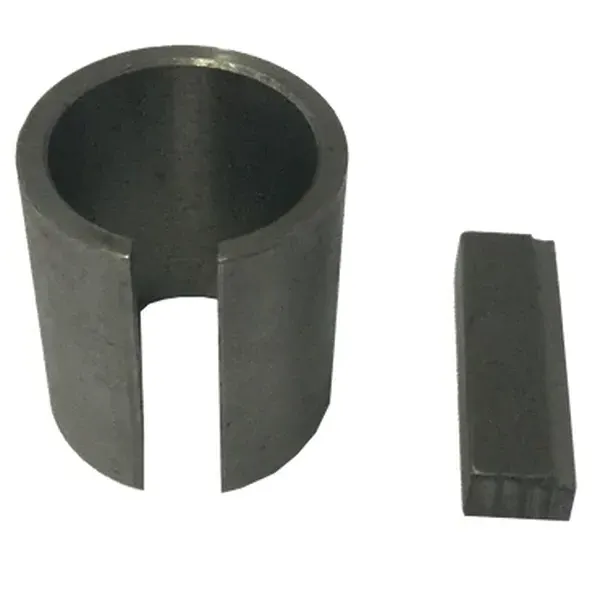

Advantages of FHP10K Split Taper Bushing:

FHP10K split taper bushings are commonly used in power transmission applications to secure a rotating shaft to a stationary component, such as a pulley or sprocket. Here are some advantages of using split taper bushings:1. Easy installation: FHP10K split taper bushings are designed to be easy to install and remove. They have a split design that allows them to be clamped onto a shaft without having to slide them over the end of the shaft. This makes installation much quicker and easier, compared to other types of bushings.2. Increased torque capacity: FHP10K split taper bushings have a higher torque capacity than other types of bushings. This is because the split design allows the bushing to clamp down tightly on the shaft, distributing the load evenly over a larger area. This results in a stronger and more secure connection between the shaft and the component.3. Reduced vibration: FHP10K split taper bushings can help reduce vibration and noise in rotating equipment. This is because the split design allows the bushing to absorb some of the shock and vibration that can occur during operation, leading to smoother and quieter operations.4. Cost-effective: FHP10K split taper bushings are generally less expensive than other types of bushings, making them a cost-effective solution for many applications.5. Versatile: FHP10K split taper bushings are highly versatile and can be used in a wide range of applications, including power transmission, conveyor systems, and industrial machinery. They are available in various sizes and configurations to accommodate different shaft diameters and hub sizes.

Applications of FHP10K Split Taper Bushing:

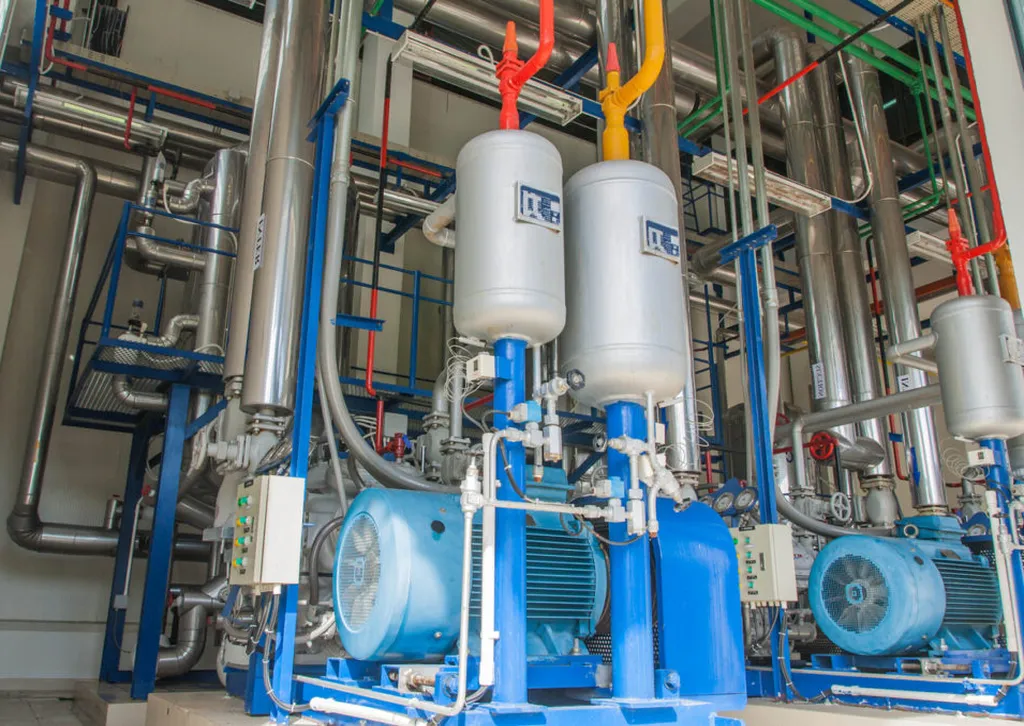

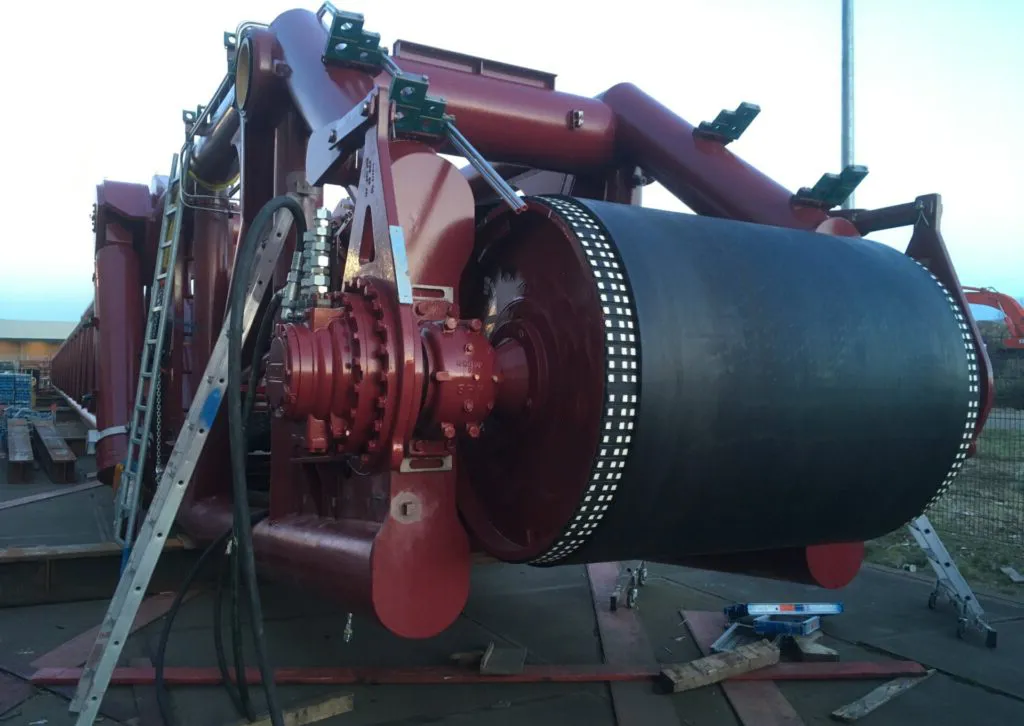

FHP10K split taper bushings are commonly used in a variety of power transmission applications where a rotating shaft needs to be secured to a stationary component, such as a pulley, sprocket, or gear. Here are some common applications of FHP10K split taper bushings:(1) Conveyor systems: FHP10K split taper bushings are commonly used in conveyor systems to secure the conveyor belt to the drive pulley. This helps to ensure that the belt remains properly aligned and tensioned, resulting in smooth and efficient operation.(2) Pumps and compressors: FHP10K split taper bushings are also used in pumps and compressors to secure the impeller or rotor to the shaft. This helps to ensure that the impeller or rotor rotates at the correct speed and with the proper torque, resulting in efficient and reliable operation.(3) Electric motors: FHP10K split taper bushings are often used in electric motors to secure the motor shaft to the fan or pulley. This helps to ensure that the motor operates smoothly and efficiently, with minimal vibration and noise.(4) Agricultural machinery: FHP10K split taper bushings are commonly used in agricultural machinery, such as tractors and combines, to secure components such as pulleys and gears to the drive shaft. This helps to ensure that the machinery operates efficiently and reliably, even under heavy loads and in harsh environments.(5) Industrial machinery: FHP10K split taper bushings are also used in a wide range of other industrial machinery, including printing presses, woodworking equipment, and packaging machinery, to name just a few examples. In each case, the split taper bushing helps to ensure that the rotating components are securely attached to the shaft, resulting in efficient and reliable performance.

China Split Taper Bushing Manufacturers

Are you looking for high-quality bushings or replacement bushings for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, and split taper bushing will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.Our team of professionals is ready to address any questions you may have and can even create custom bushings in a variety of materials. For additional information or to get a quote, please contact our knowledgeable customer support team and we will happily assist you.
