FHP16K Split Taper Bushing

FHP16K Split Taper Bushing

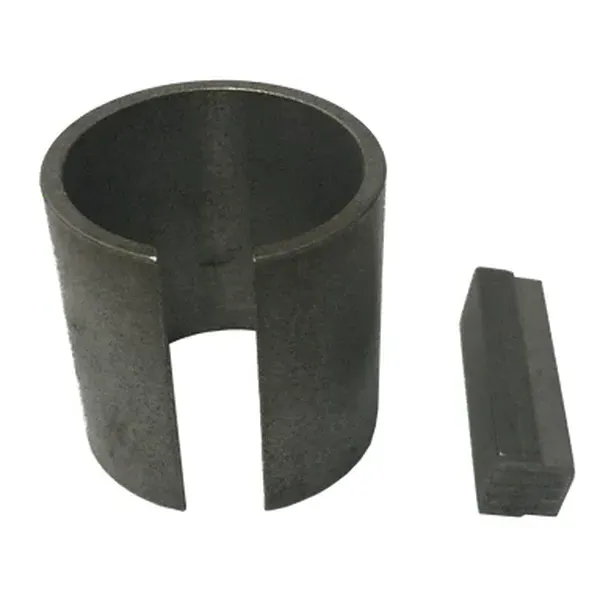

The FHP16K split taper bushing is a mechanical component used to mount a pulley, sprocket, or other rotating equipment onto a shaft. It is designed to fit onto a tapered shaft and provide a secure, concentric grip that can transmit torque and minimize slippage.The FHP16K split taper bushing is made of high-quality steel and features a split design that allows for easy installation and removal without the need to disassemble the entire drive system. It has a keyless locking mechanism that provides a tight fit between the bushing and the shaft, which helps to prevent vibration and wear.The FHP16K split taper bushing is commonly used in a variety of industrial applications, including conveyor systems, pumps, and generators. It is compatible with a wide range of shaft sizes and can accommodate a variety of bore sizes for different equipment.

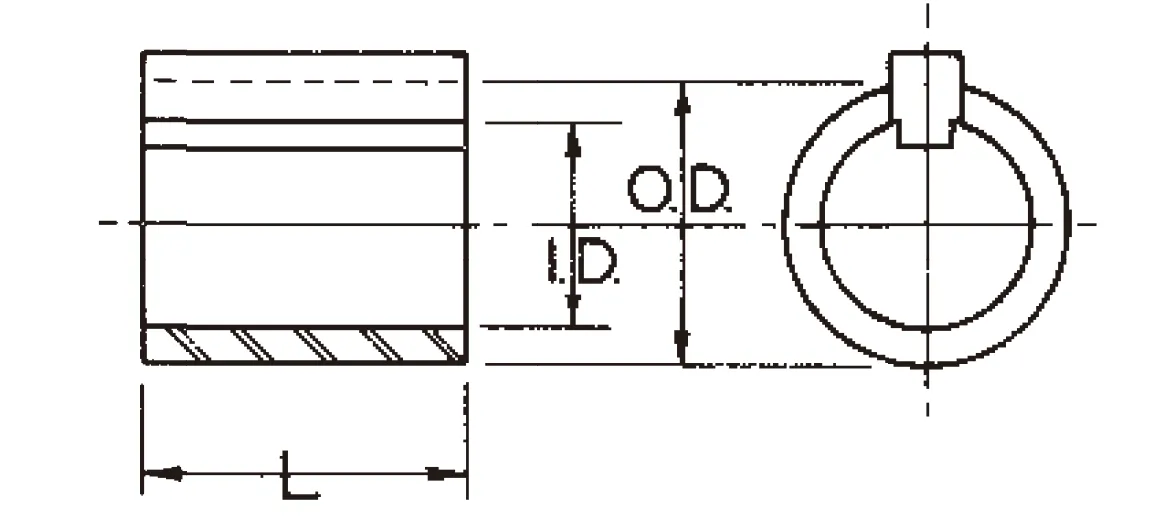

FHP16K Split Taper Bushing Dimensions:

Bushing Part No.	FHP16K Split Taper Bushing
Outside Diameter (O.D.)	1 7/16"
Inside Diameter (I.D.)	1 5/16"
Length	1 3/8"
Keyway Size	3/8" X 7/32" — 5/16" X 5/32"
Bore Type	Finished with Keyway
Material	Steel
Application	Mounting of various FHP drive components, including sheaves, pulleys, and sprockets.

Why Choose the FHP16K Split Taper Bushing?

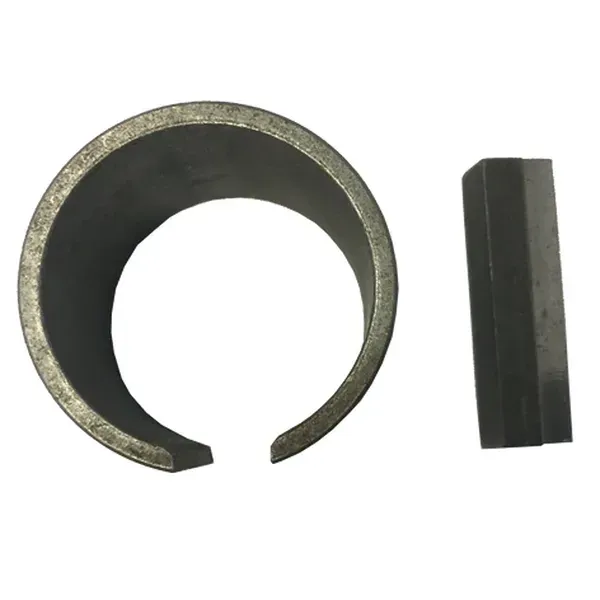

FHP16K split taper bushings have several advantages, including:1. Easy installation: FHP16K split taper bushings are designed to be easy to install. They can be easily slipped over a shaft and tightened with a few bolts or screws. This makes them ideal for use in applications where frequent maintenance or replacement is required.2. Versatility: FHP16K split taper bushings can be used with a wide range of shaft sizes and bore diameters. This means that they can be used in many different types of machinery and equipment.3. Reduced vibration: FHP16K split taper bushings are designed to reduce vibration and increase the stability of the shaft. This can help to improve the performance and reliability of the machinery or equipment that they are used in.4. Easy removal: FHP16K split taper bushings can be easily removed when they need to be replaced or when the shaft needs to be serviced. This can save time and money on maintenance and repairs.5. Cost-effective: FHP16K split taper bushings are a cost-effective solution for securing shafts and reducing vibration. They are often less expensive than other types of bushings and can provide similar performance and reliability.

Where is the FHP16K Split Taper Bushing Used?

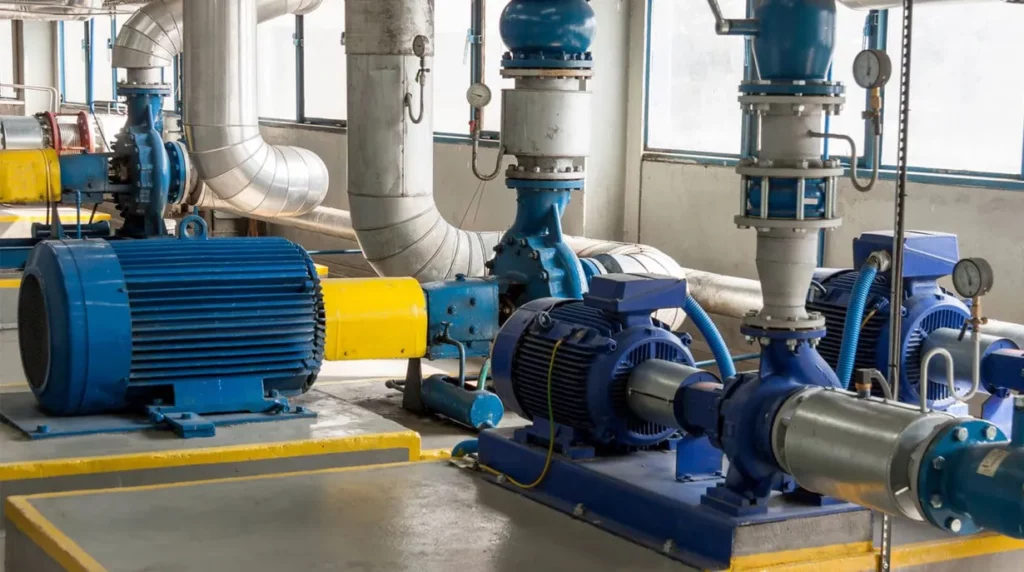

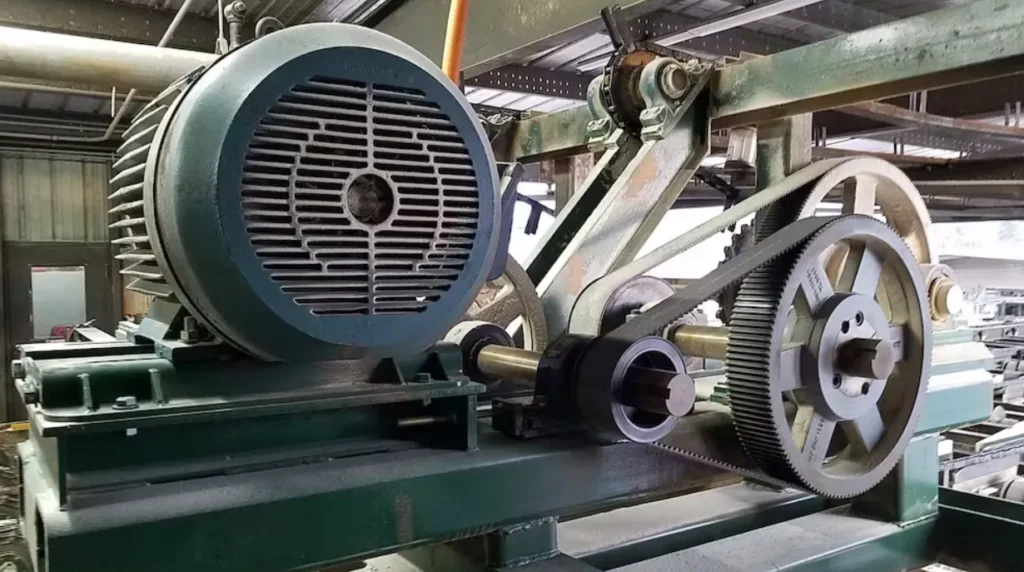

FHP16K split taper bushings are mechanical devices used to mount hubs, pulleys, and sprockets to shafts. The taper angle of the bushing matches that of the shaft, creating a tight, secure fit that minimizes slippage and maximizes torque transmission. FHP16K split taper bushings are commonly used in a wide range of applications, including:(1) Power transmission: FHP16K split taper bushings are commonly used in power transmission applications to connect pulleys, sprockets, and gears to shafts. They provide a secure and precise fit, which minimizes vibration and maximizes power transmission efficiency.(2) Conveyor systems: FHP16K split taper bushings are often used in conveyor systems to mount conveyor pulleys to shafts. They provide a secure and accurate fit that ensures smooth and efficient operation of the conveyor.(3) Pumps and compressors: FHP16K split taper bushings are used in pumps and compressors to mount impellers and rotors to shafts. They provide a secure and precise fit that minimizes vibration and maximizes efficiency.(4) Machine tools: FHP16K split taper bushings are used in machine tools to mount cutting tools and fixtures to spindles. They provide a secure and accurate fit that ensures precise and efficient machining.(5) Agricultural equipment: FHP16K split taper bushings are used in agricultural equipment to connect pulleys, sprockets, and gears to shafts. They provide a secure and precise fit that ensures the efficient operation of the equipment.

China Split Taper Bushing Manufacturers

Are you looking for high-quality bushings or replacement bushings for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, and split taper bushing will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.Our team of professionals is ready to address any questions you may have and can even create custom bushings in a variety of materials. For additional information or to get a quote, please contact our knowledgeable customer support team, and we will happily assist you.
