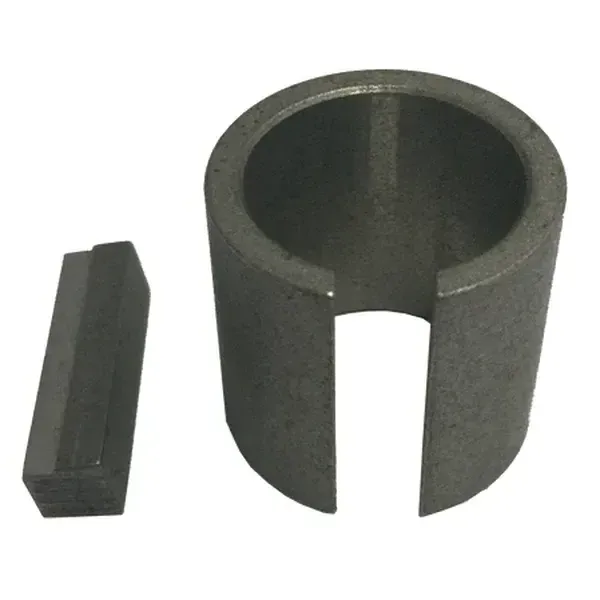

FHP3K Split Taper Bushing

FHP3K Split Taper Bushing

The FHP3K split taper bushing is a mechanical component used to mount pulleys, sprockets, and other types of rotating equipment onto a shaft. It is designed to fit onto a standard shaft size and has a tapered bore that matches the taper of the equipment being mounted, allowing for a secure and precise fit.The FHP3K split taper bushing is made of high-quality steel with a black oxide finish to provide corrosion resistance and durability. Its split design allows for easy installation and removal without the need to remove other components from the shaft. The FHP3K split taper bushing is commonly used in a variety of industries, including manufacturing, agriculture, conveyors, and construction. It is suitable for use in applications that require high torque transmission and precise alignment of rotating equipment.

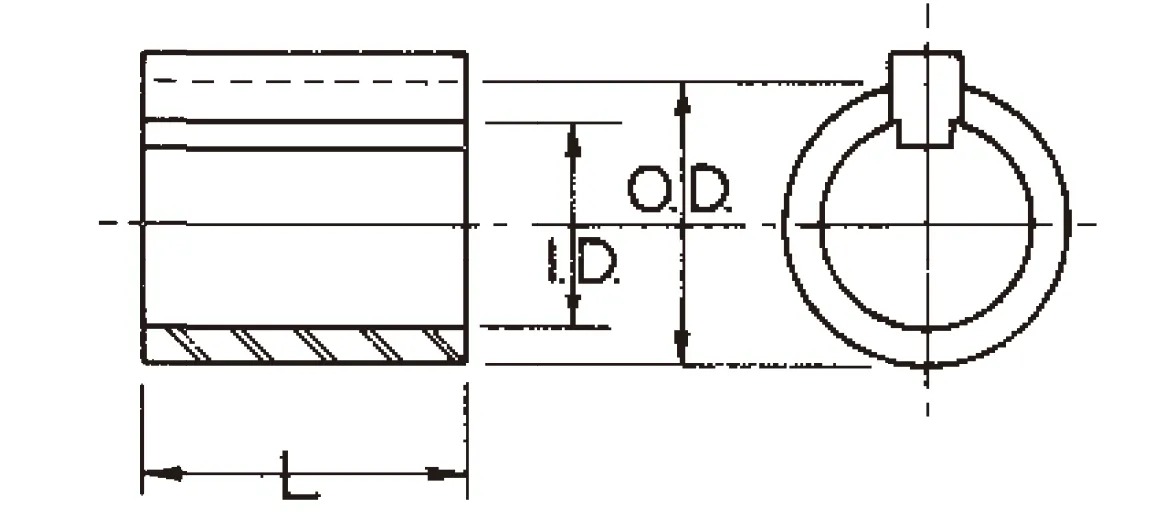

FHP3K Split Taper Bushing Dimensions:

Bushing Part No.	FHP3K Split Taper Bushing
Outside Diameter (O.D.)	1''
Inside Diameter (I.D.)	5/8''
Length	1 1/8''
Keyway Size	1/4'' X 5/16'' — 3/16'' X 3/32''
Bore Type	Finished with Keyway
Material	Steel
Application	Mounting of various FHP drive components, including sheaves, pulleys, and sprockets.

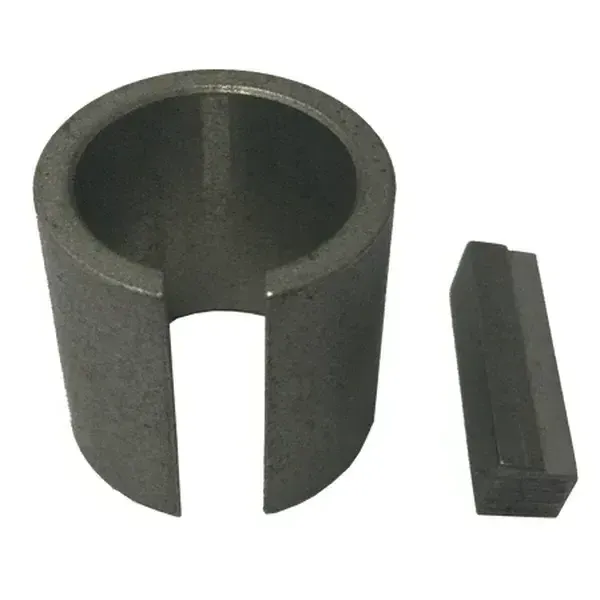

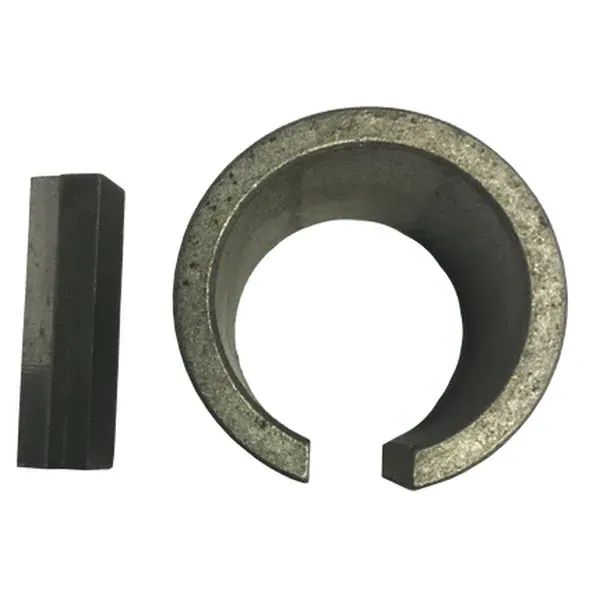

Benefits of Using the FHP3K Split Taper Bushing:

FHP3K split taper bushings are a type of mechanical component that is used to mount sheaves, sprockets, gears, and other components on shafts. They are made up of two halves that are joined together by a key, which allows the bushing to be easily installed and removed from the shaft.There are many benefits to using the FHP3K split taper bushings, including:1. Easy installation and removal: The split design makes it easy to install and remove the FHP3K split taper bushing from the shaft. This is a major advantage over other types of bushings, which can be difficult to install and remove.2. Snug fit on the shaft: The tapered bore of the FHP3K split taper bushing ensures a snug fit on the shaft. This helps to prevent the bushing from slipping or wobbling, even under high loads.3. Durable construction: FHP3K split taper bushings are typically made of steel or other durable materials. This makes them resistant to wear and tear, and they can withstand high loads.4. Versatile applications: FHP3K split taper bushings can be used in a variety of applications. They are commonly used in power transmission systems, conveyors, and other industrial machinery.5. Reduced friction: The tapered bore of the FHP3K split taper bushing helps to reduce friction between the bushing and the shaft. This can improve efficiency and reduce wear and tear on the components.6. Increased accuracy: The split design of the FHP3K split taper bushing allows for a more accurate alignment of the components. This can improve performance and reduce vibration.Overall, FHP3K split taper bushings are a versatile and reliable component that can be used in a variety of applications. They offer a number of benefits over other types of bushings, including easy installation and removal, a snug fit on the shaft, and durable construction.

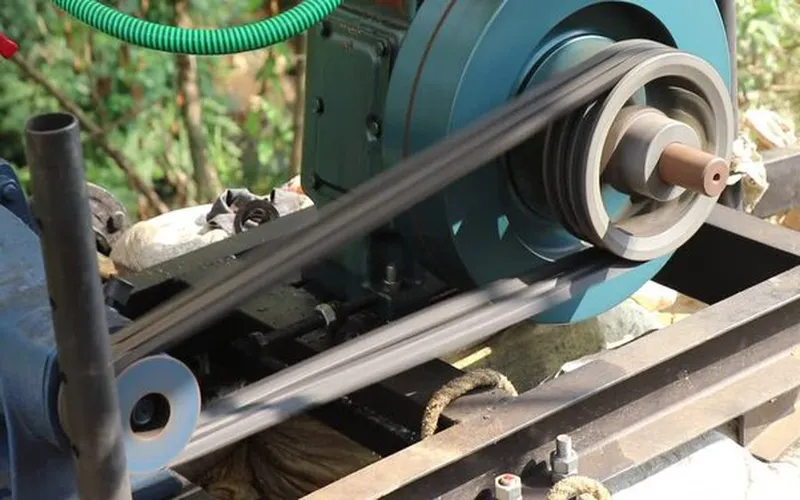

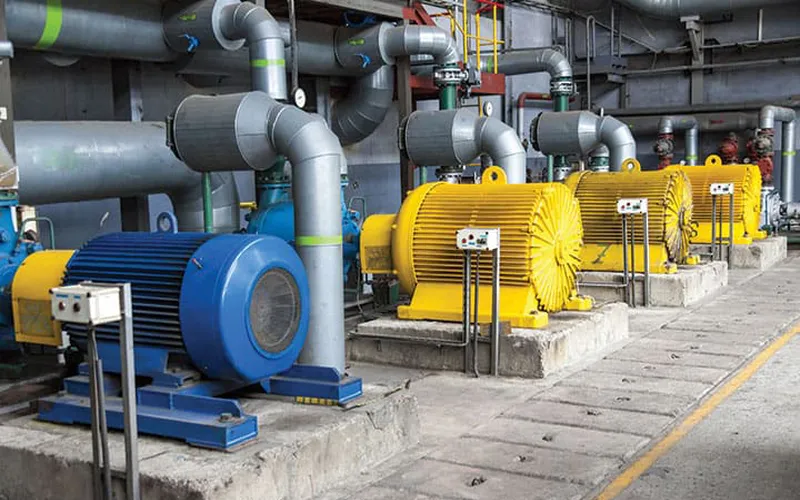

FHP3K Split Taper Bushing Application Scenarios:

FHP3K split taper bushings are a type of mechanical fastener used to mount components onto shafts. They are commonly used in power transmission applications, such as motors, gearboxes, and pumps. Here are some common scenarios where FHP3K split taper bushings are used:(1) Motor Mounting: FHP3K split taper bushings are commonly used to mount electric motors onto shafts. The bushing is inserted into the motor's mounting hub and then tightened onto the shaft using a set of screws. This creates a secure and rigid connection between the motor and the shaft, allowing for efficient power transmission.(2) Gearbox Mounting: FHP3K split taper bushings are also commonly used to mount gearboxes onto shafts. The bushing is inserted into the gearbox's mounting hub and then tightened onto the shaft using a set of screws. This creates a secure and rigid connection between the gearbox and the shaft, allowing for efficient power transmission.(3) Pump Mounting: FHP3K split taper bushings are also commonly used to mount pumps onto shafts. The bushing is inserted into the pump's mounting hub and then tightened onto the shaft using a set of screws. This creates a secure and rigid connection between the pump and the shaft, allowing for efficient power transmission.(4) Conveyor Belt Systems: FHP3K split taper bushings are often used in conveyor belt systems to mount pulleys onto shafts. The bushing is inserted into the pulley's mounting hub and then tightened onto the shaft using a set of screws. This creates a secure and rigid connection between the pulley and the shaft, allowing for efficient power transmission.(5) Agricultural Equipment: FHP3K split taper bushings are also used in agricultural equipment, such as tractors and combines. They are used to mount various components onto shafts, such as blades and pulleys. The bushing is inserted into the component's mounting hub and then tightened onto the shaft using a set of screws. This creates a secure and rigid connection between the component and the shaft, allowing for efficient power transmission.

China Split Taper Bushing Manufacturers

Are you looking for high-quality bushings or replacement bushings for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, and split taper bushing will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.Our team of professionals is ready to address any questions you may have and can even create custom bushings in a variety of materials. For additional information or to get a quote, please contact our knowledgeable customer support team and we will happily assist you.
