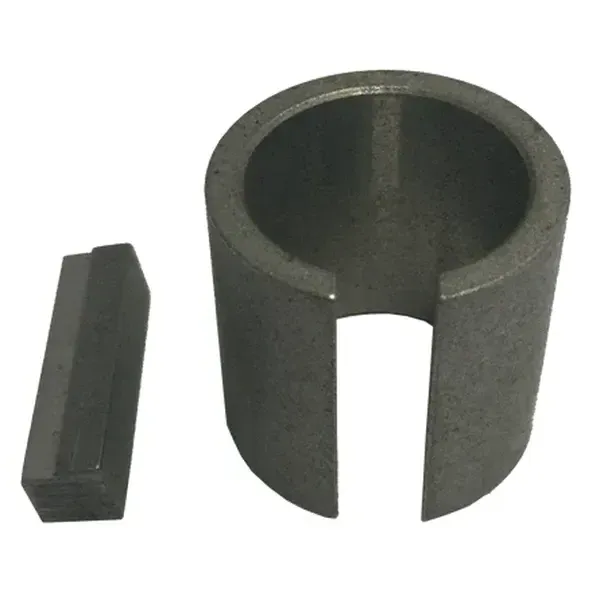

FHP4K Split Taper Bushing

FHP4K Split Taper Bushing

The FHP4K split taper bushing is a type of mechanical bushing or adapter that is commonly used to mount pulleys, sprockets, and other components onto shafts. The FHP4K split taper bushing is designed to fit onto a shaft with a tapered bore and then be tightened in place using screws or bolts. The FHP4K bushing has a split design, which allows it to be easily installed and removed from the shaft without the need for specialized tools or equipment.The FHP4K split taper bushing is typically made from high-quality steel or other durable materials, which makes it resistant to wear, corrosion, and other forms of damage. This type of split taper bushing is commonly used in a wide range of industrial applications, including manufacturing, construction, and mining. It is often used in conjunction with other types of components, such as bearings and belts, to create a complete power transmission system.

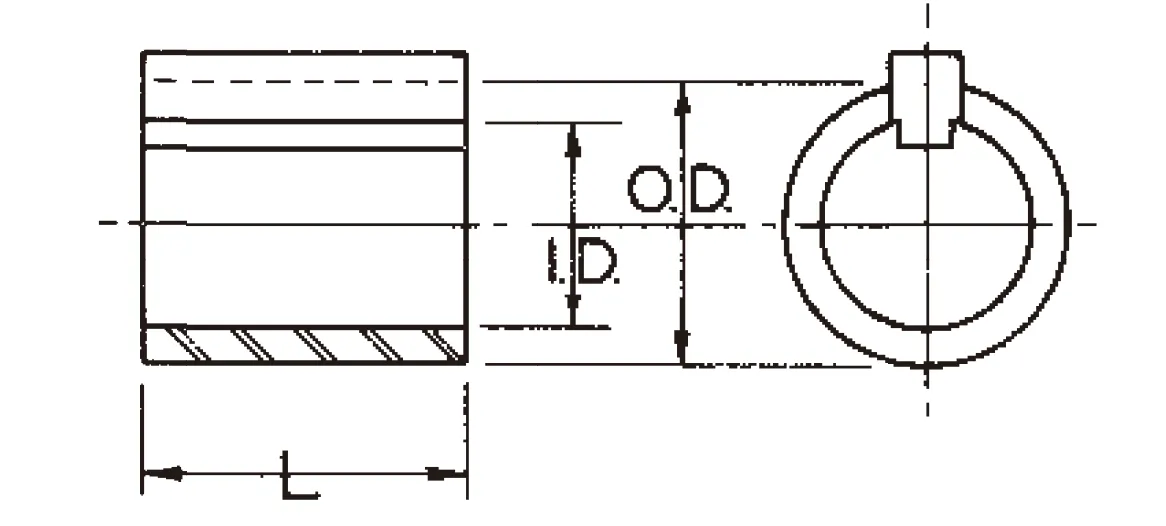

FHP4K Split Taper Bushing Dimensions:

Bushing Part No.	FHP4K Split Taper Bushing
Outside Diameter (O.D.)	1"
Inside Diameter (I.D.)	3/4"
Length	1 1/8"
Keyway Size	1/4" X 1/4" — 3/16" X 3/32"
Bore Type	Finished with Keyway
Material	Steel
Application	Mounting of various FHP drive components, including sheaves, pulleys, and sprockets.

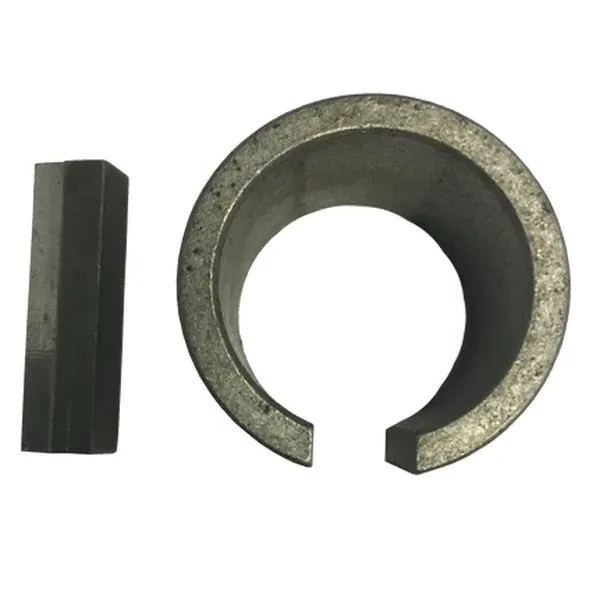

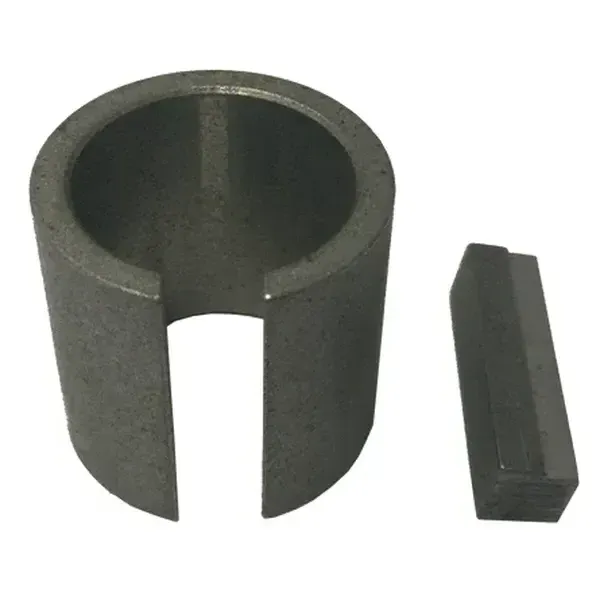

FHP4K Split Taper Bushing Advantages:

FHP4K split taper bushings are mechanical components that are used to mount and secure rotating shafts to various types of machinery. They are designed to fit into a tapered hole in a pulley, gear, or sprocket, and then expand as a screw is tightened, creating a tight, secure fit. Here are some advantages of FHP4K split taper bushings:1. Easy Installation: SFHP4K split taper bushings are easy to install and remove, making them a popular choice for applications where the shaft or component may need to be changed frequently.2. High Torque Capacity: FHP4K split taper bushings have a high torque capacity, which means they can handle high loads and transmit more power than other types of bushings.3. Improved Shaft Grip: FHP4K split taper bushings grip the shaft with a tight, secure fit, which helps to prevent slippage and ensures accurate positioning of the mounted component.4. Reduced Vibration and Noise: FHP4K split taper bushings help to reduce vibration and noise in mechanical systems by providing stable, secure mounting for components such as pulleys and sprockets.5. Compatibility: FHP4K split taper bushings are compatible with a wide range of shaft sizes and component types, making them a versatile solution for many different applications.

Split Taper Bushing Vs Taper Lock Bushing:

Both split taper bushings and taper lock bushings are types of mechanical components used to mount and secure rotating machinery components onto shafts. However, there are some key differences between them.A split taper bushing is designed to fit into a tapered bore in a hub or other machine component. It has a split design which allows it to be easily installed and removed from the shaft without having to move the mounted component or disassemble the entire machinery. The split design also provides a secure and tight fit onto the shaft, which helps to reduce vibration and ensure accurate alignment.A taper lock bushing, on the other hand, is also designed to fit into a tapered bore in a hub or other machine component. However, it uses a different mechanism to secure the bushing onto the shaft. A taper lock bushing has a series of axial slots around its circumference that are engaged by bolts or screws that are tightened to compress the bushing onto the shaft. This provides a strong and secure clamping force that can handle high torque and axial loads.In summary, the main difference between split taper bushings and taper lock bushings is the method of securing the bushing onto the shaft. Split taper bushings use a split design for easy installation and removal, while taper lock bushings use bolts or screws to provide a strong and secure clamping force.

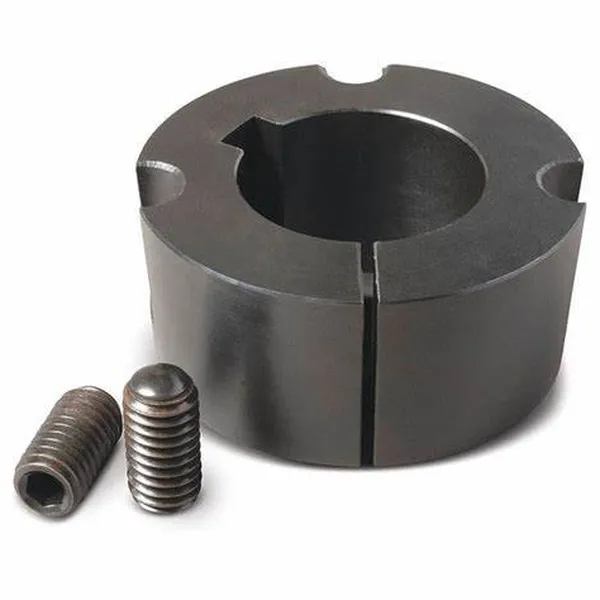

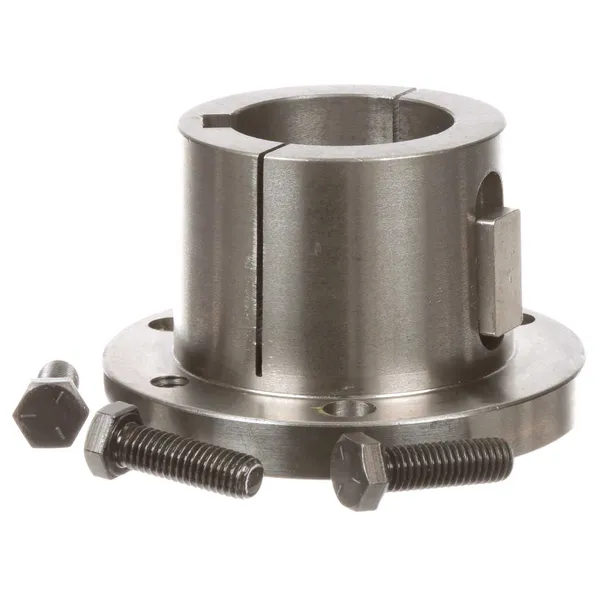

Split Taper Bushing	Taper Lock Bushing

FHP4K Split Taper Bushing Maintainance:

FHP4K split taper bushings are designed to be low-maintenance components, but some basic maintenance procedures can help to ensure they perform optimally and extend their lifespan. Here are some maintenance tips for FHP4K split taper bushings:Inspect regularly: Check the condition of the split taper bushing regularly to ensure it is free from any cracks, deformation, or other signs of wear and tear. If any damage is detected, replace the bushing immediately.Lubricate as needed: Apply lubrication to the split taper bushing and shaft as needed to ensure smooth rotation and reduce friction. Use a high-quality lubricant recommended by the manufacturer.Clean the bushing and shaft: Regularly clean the split taper bushing and shaft to remove any dirt, debris, or other contaminants that may affect the performance of the bushing. Use a clean, dry cloth or brush to wipe the surfaces.Check for proper installation: Check that the split taper bushing is properly installed in the hub or machine component and that it is seated correctly on the shaft. Ensure that the bolts or screws are tightened to the manufacturer's recommended torque settings.Monitor performance: Keep track of the performance of the split taper bushing and the machinery it is installed on. Note any changes in vibration, noise, or other signs of abnormal operation, and investigate and address the cause promptly.

China Split Taper Bushing Manufacturers

Are you looking for high-quality bushings or replacement bushings for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, and split taper bushing will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.Our team of professionals is ready to address any questions you may have and can even create custom bushings in a variety of materials. For additional information or to get a quote, please contact our knowledgeable customer support team and we will happily assist you.
