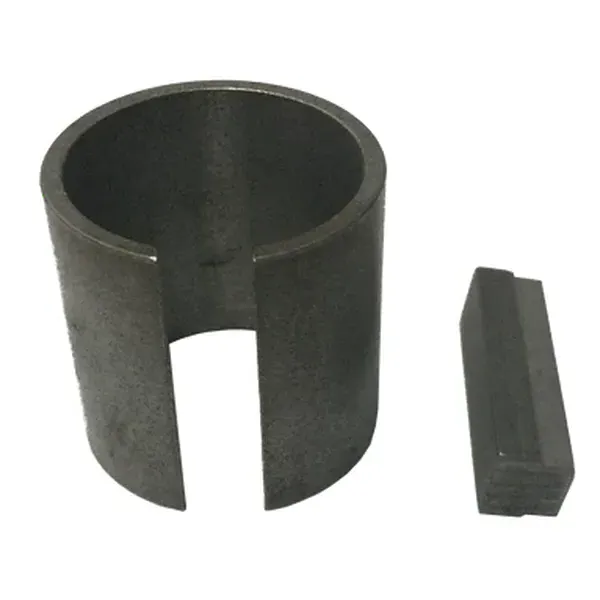

FHP5K Split Taper Bushing

FHP5K Split Taper Bushing

The FHP5K split taper bushing is a type of split taper bushing that is commonly used in industrial applications. It is made of a high-quality steel alloy that is heat-treated for strength and durability. The FHP5K split taper bushing has a split design that allows it to be easily installed and removed from a shaft. It also has a tapered bore that provides a secure fit for a variety of components, such as pulleys, sprockets, gears, and sheaves.The FHP5K split taper bushing is available in a variety of sizes to fit different shafts. It is also available with a variety of keyways to accommodate different components. The FHP5K split taper bushing is a versatile and reliable split taper bushing that is ideal for a wide range of industrial applications, including conveyor systems, pumps, and agricultural equipment.

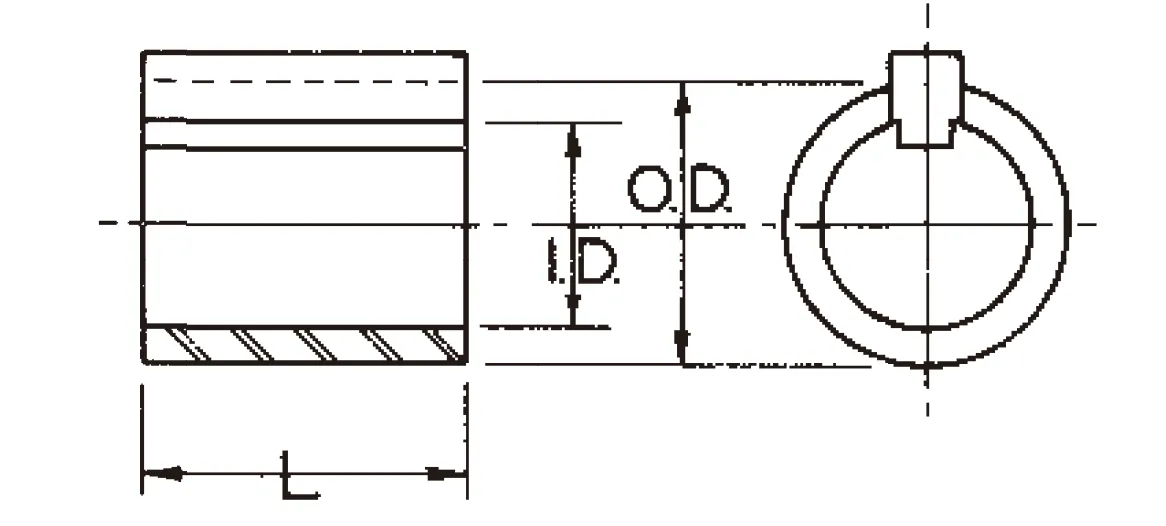

FHP5K Split Taper Bushing Dimensions:

Bushing Part No.	FHP5K Split Taper Bushing
Outside Diameter (O.D.)	1"
Inside Diameter (I.D.)	7/8"
Length	1 1/8"
Keyway Size	1/4" X 5/32" — 3/16" X 3/32"
Bore Type	Finished with Keyway
Material	Steel
Application	Mounting of various FHP drive components, including sheaves, pulleys, and sprockets.

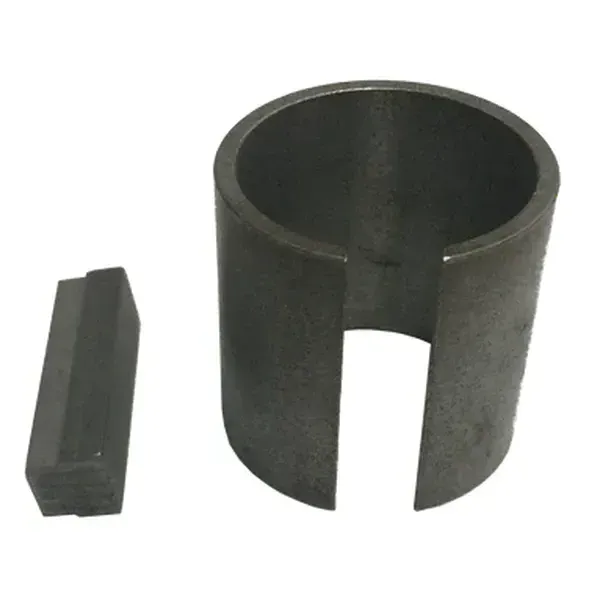

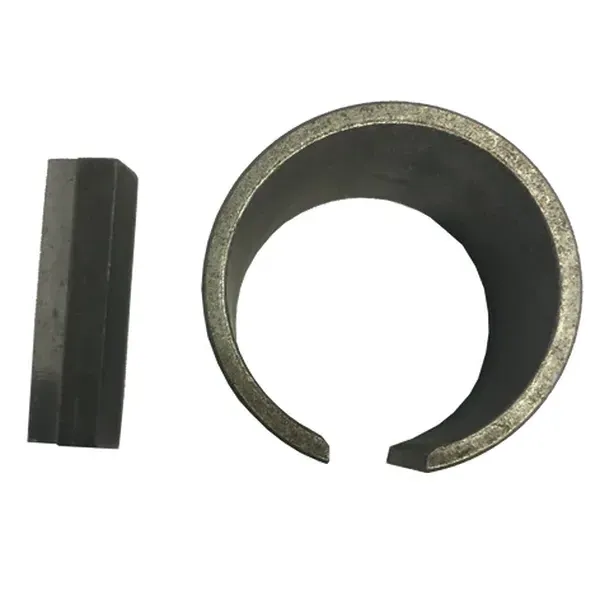

FHP5K Split Taper Bushing Design Features:

The following are some of the key design features of the FHP5K split taper bushing:1. Split design: The FHP5K split taper bushing is split into two halves, which makes it easy to install and remove. The split also allows for the bushing to be adjusted to accommodate different shaft sizes.2. Precision-machined bore: The bore of the FHP5K split taper bushing is precision-machined to provide a tight fit on the shaft. This ensures that the bushing will not wobble or move during operation, which can lead to premature wear and damage.3. Heat-treated steel alloy: The FHP5K split taper bushing is made of a high-quality steel alloy that is heat-treated to provide strength and durability. This makes the bushing resistant to wear and damage, even under high-stress conditions.4. Chamfered bore: The bore of the FHP5K split taper bushing is chamfered to help prevent binding. This is a small, angled cut that is made on the edge of the bore. The chamfer helps to ensure that the bushing will slide smoothly onto the shaft, without binding or jamming.5. Ground surface finish: The surface of the FHP5K split taper bushing is ground to a smooth finish. This reduces friction and wear, which helps to extend the life of the bushing.The FHP5K split taper bushing is a high-quality, precision-made bushing that is ideal for a variety of high-precision applications. Its split design, precision-machined bore, heat-treated steel alloy, chamfered bore, and ground surface finish make it a reliable and durable bushing that can withstand even the most demanding conditions.

How to Install the FHP5K Split Taper Bushing?

here are the steps on how to install the FHP5K split taper bushing:

1. Clean the shaft. Use a clean rag and solvent to remove any dirt, grease, or oil from the shaft.
2. Measure the shaft diameter. Use a micrometer to measure the diameter of the shaft. The shaft diameter should be slightly larger than the inner diameter of the split taper bushing.
3. Select the correct bushing size. The split taper bushing size should be slightly smaller than the shaft diameter.
4. Lubricate the bushing. Apply a thin coat of lubricant to the inside of the split taper bushing. This will help to prevent the split taper bushing from seizing to the shaft.
5. Install the bushing on the shaft. Align the keyway in the split taper bushing with the keyway in the shaft. Then, slide the bushing onto the shaft.
6. Secure the bushing in place. Use two nuts to secure the split taper bushing in place. The nuts should be tightened evenly to prevent the bushing from distorting.

China Split Taper Bushing Manufacturers

Are you looking for high-quality bushings or replacement bushings for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, and split taper bushing will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.Our team of professionals is ready to address any questions you may have and can even create custom bushings in a variety of materials. For additional information or to get a quote, please contact our knowledgeable customer support team, and we will happily assist you.
