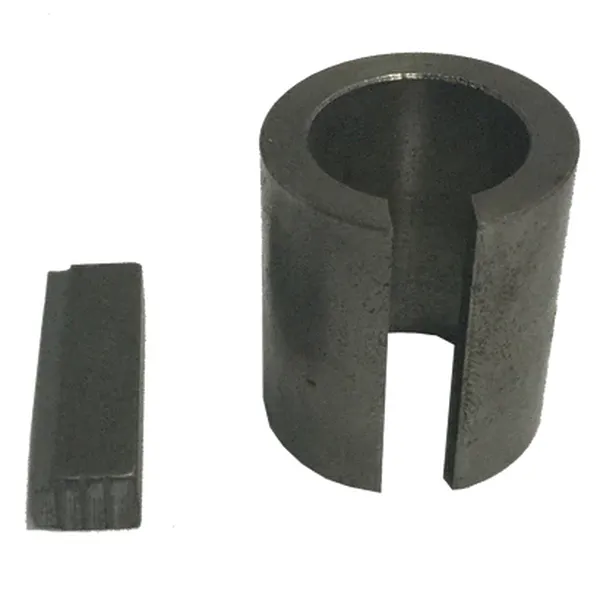

FHP9K Split Taper Bushing

FHP9K Split Taper Bushing

The FHP9K split taper bushing is a type of mechanical component that is used to mount sheaves, sprockets, gears, and other rotating components on shafts. It is a split bushing, which means that it is made up of two halves that are joined together by a key. This allows the bushing to be installed and removed from the shaft without the need to remove the rotating component.The FHP9K split taper bushing is designed for use in applications with lower torque. It has a double-split steel barrel that is heat treated for strength and durability. The bushing is also keyed to the shaft, which helps to prevent it from rotating. The FHP9K split taper bushing is a versatile component that can be used in a variety of applications. It is commonly used in power transmission systems, conveyors, and other industrial applications.

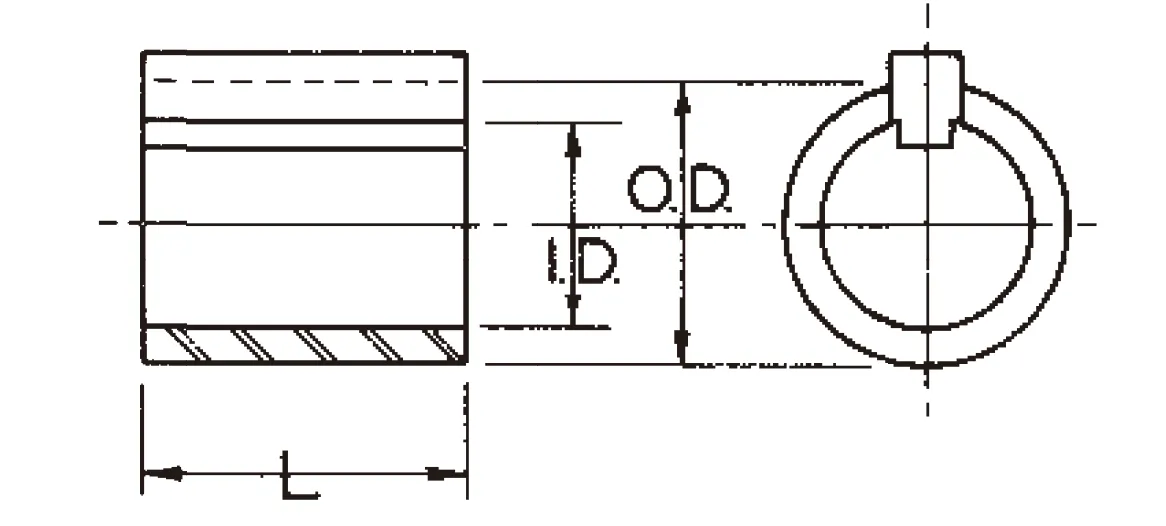

FHP9K Split Taper Bushing Dimensions:

Bushing Part No.	FHP9K Split Taper Bushing
Outside Diameter (O.D.)	1''
Inside Diameter (I.D.)	11/16''
Length	1 1/8''
Keyway Size	1/4'' X 9/32'' — 3/16'' X 3/32''
Bore Type	Finished with Keyway
Material	Steel
Application	Mounting of various FHP drive components, including sheaves, pulleys, and sprockets.

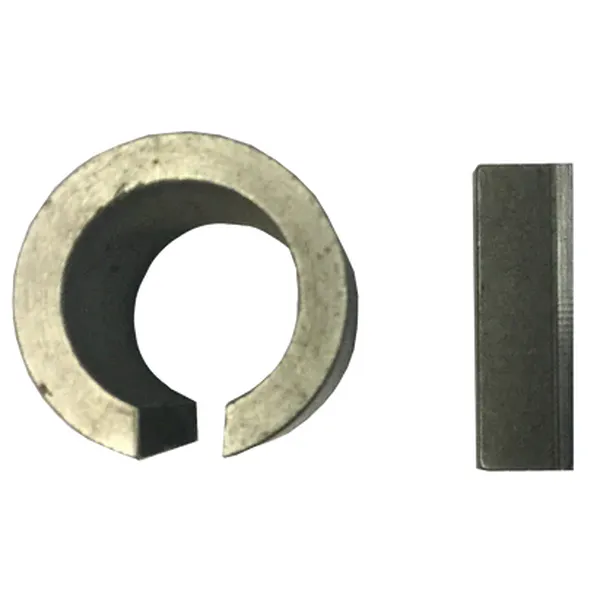

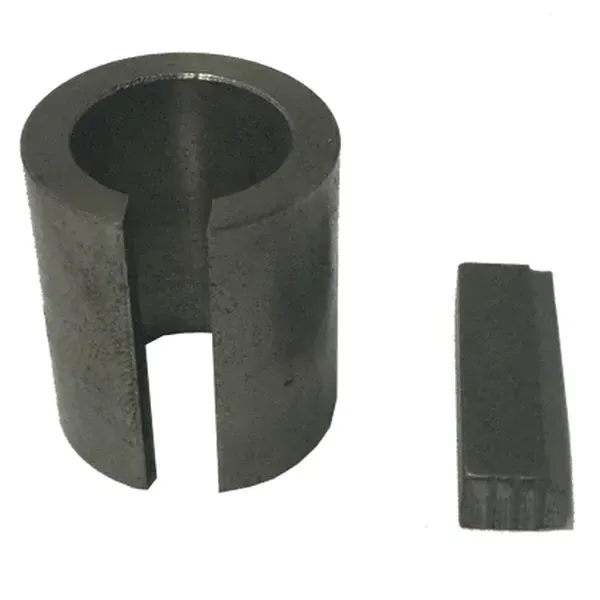

Features of FHP9K Split Taper Bushing:

FHP9K split taper bushings have a number of features that make them a versatile and reliable component. These features include:1. Split design for easy installation and removal: The split design of FHP9K split taper bushings makes them easy to install and remove from shafts. This is a valuable feature in applications where the rotating component needs to be frequently removed, such as in conveyor systems.2. Keyed to the shaft for preventing rotation: The FHP9K split taper bushing is keyed to the shaft, which helps to prevent it from rotating. This is important to ensure that the rotating component is properly aligned and that it does not come loose during operation.3. Heat-treated steel barrel for strength and durability: The FHP9K split taper bushing is made of heat-treated steel, which makes it strong and durable. This ensures that the bushing can withstand the forces and stresses that are present in many industrial applications.4. Available in a variety of sizes: FHP9K split taper bushings are available in a variety of sizes, which makes them suitable for a wide range of applications. This includes applications with different shaft diameters and different rotating components.Overall, FHP9K split taper bushings are a versatile and reliable component that can be used in a variety of industrial applications. Their split design, keying, heat-treated steel barrel, and availability in a variety of sizes make them a valuable option for many applications.

How to Choose the Right FHP9K Split Taper Bushing?

Choosing the right FHP9K split taper bushing involves considering several factors, such as the shaft size, the bore size of the equipment to be mounted, and the torque requirements of the application. Here are the steps to follow in choosing the right FHP9K split taper bushing:(1) Determine the shaft size: The first step is to measure the diameter of the shaft that the equipment will be mounted on. The FHP9K split taper bushing is available in various sizes, so it's important to choose the correct size that matches the diameter of the shaft.(2) Determine the bore size: The next step is to measure the bore size of the equipment that will be mounted using the FHP9K split taper bushing. The bore size must match the size of the tapered bushing.(3) Calculate the torque requirements: The torque requirements of the application must be calculated to ensure that the FHP9K split taper bushing can handle the load. The torque requirements depend on the power transmitted, the speed of rotation, and the diameter of the pulley or sprocket. It's important to choose an FHP9K split taper bushing that is rated to handle the required torque.(4) Choose the correct material: FHP9K split taper bushings are available in a variety of materials, including steel and cast iron. The material chosen should be based on the application's environmental conditions, such as temperature, humidity, and exposure to corrosive substances.(5) Check the bushing's specifications: Finally, it is important to check the bushing's specifications to ensure that the FHP9K split taper bushing is compatible with the equipment and the application. This includes checking the dimensions, torque rating, and material specifications.

China Split Taper Bushing Manufacturers

Are you looking for high-quality bushings or replacement bushings for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, and split taper bushing will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.Our team of professionals is ready to address any questions you may have and can even create custom bushings in a variety of materials. For additional information or to get a quote, please contact our knowledgeable customer support team, and we will happily assist you.
