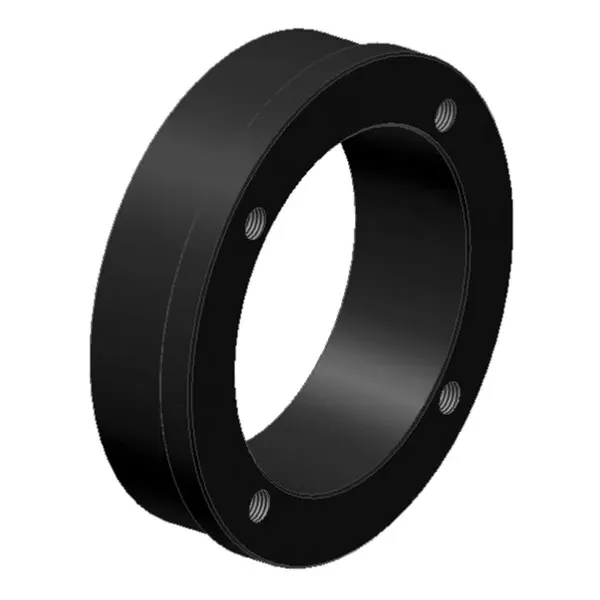

XTH120 Weld-On Hubs

XTH120 Weld-On Hubs

The XTH120 weld-on hubs are designed to be used with XTB120 bushings in various applications requiring a secure and reliable connection between shafts and hubs. These components are commonly used in mechanical power transmission systems, such as conveyor systems, industrial machinery, and rotating equipment.The XTH120 weld-on hubs provide a means of attaching the XTB120 bushings to shafts, allowing for easy installation, removal, and repositioning of the hub on the shaft. The weld-on design ensures a strong and durable connection, capable of withstanding high torque and axial loads.XTB120 bushings, on the other hand, are used as a mechanical interface between the shaft and the hub. They provide a secure grip on the shaft, preventing slippage and ensuring efficient power transmission. These bushings typically feature a tapered bore and are easily mounted and dismounted using common tools.When using the XTH120 weld-on hubs with XTB120 bushings, it is essential to ensure proper alignment and secure welding of the hub to the shaft. This will help maintain the integrity of the connection and maximize the performance and lifespan of the equipment.

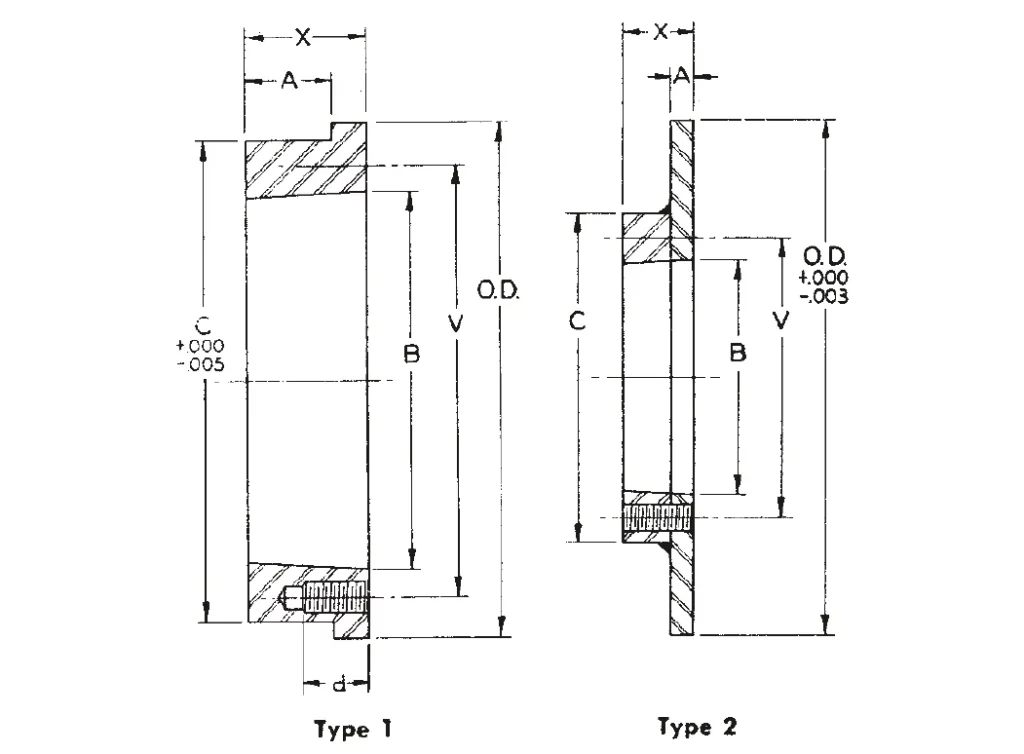

XTH120 Weld-On Hubs Dimensions:

Part No.		XTH120 Hubs (Type 1 Hubs)
For Bushing		XTB120 Bushings
Dimensions	O.D.	21"
	A	3 1/2"
	B	16.188"
	C	20 1/2"
	V	18 3/16"
	X	4 13/16"
	d	2"
	No.	8
	Size	1 1/8" - 7UNC
Wt lbs.		188

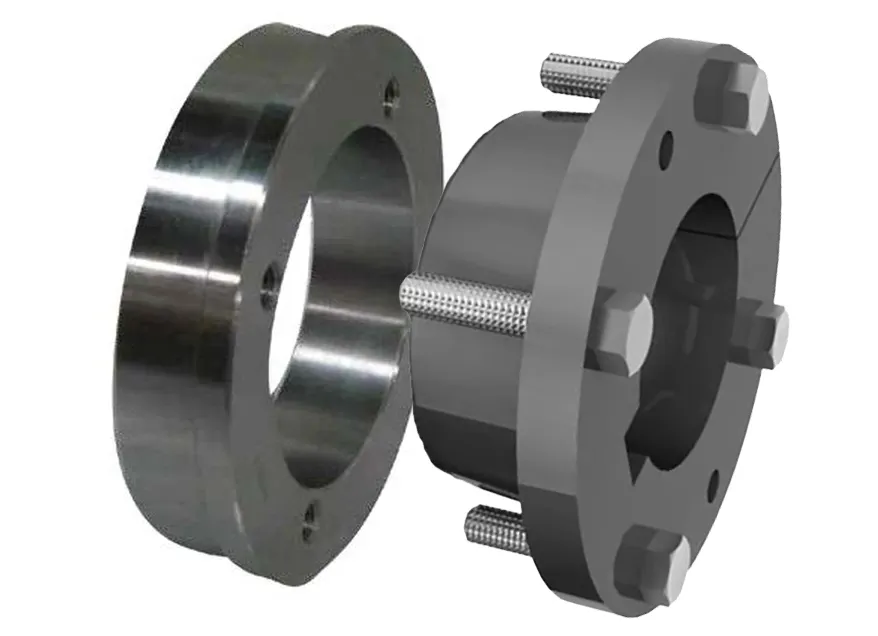

XTH120 Weld-On Hubs Benefits:

The XTH120 weld-on hubs offer a number of benefits, including:1. Precision-machined for a perfect fit: The XTH120 weld-on hubs are precision-machined to ensure a perfect fit with the XTB120 taper bushes. This ensures that the hub and bush are properly aligned, which is essential for a secure and reliable connection.2. Extended flange for easy welding: The extended flange on the XTH120 weld-on hubs provides a convenient means of welding the hub to the shaft. This makes it easy to create a secure and permanent connection.3. High-quality steel construction: The XTH120 weld-on hubs are made from high-quality steel, which makes them strong and durable. This means that they can withstand the rigors of everyday use in a variety of applications.4. Ideal for a variety of applications: The XTH120 weld-on hubs are ideal for a variety of applications, including fans, pumps, conveyors, and agitators. They are also a great choice for custom applications where a secure and reliable connection is required.5. Secure and reliable connection: The XTH120 weld-on hubs provide a secure and reliable connection between the hub and the shaft. This is essential for applications where there is a lot of vibration or movement.Overall, the XTH120 weld-on hubs offer a number of benefits that make them a great choice for a variety of applications. If you are looking for a high-quality, secure, and reliable connection, then the XTH120 is the perfect choice for you.

XTH120 Weld-On Hubs Maintainance:

The XTH120 weld-on hubs are relatively low-maintenance components. However, there are a few things you can do to keep them in good condition:

• Inspect the hubs regularly for signs of wear or damage. This includes checking for cracks, corrosion, and loose or missing bolts. If you find any damage, the hub should be replaced.
• Lubricate the hubs regularly. This will help to keep them moving smoothly and prevent wear. Use a high-quality lubricant that is designed for steel.
• Inspect the welds periodically. The welds should be strong and free of cracks. If you find any cracks, the welds should be repaired or replaced.
• Store the hubs in a dry, clean place. This will help to prevent corrosion.

By following these simple maintenance tips, you can help to extend the life of your XTH120 weld-on hubs.

China XT Bushing Hubs Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, XT bushing, XT bushing hubs, steel hubs for split taper bushings, XH hubs, QD-type weld-on hubs, and welding hubs for taper bushings will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.
